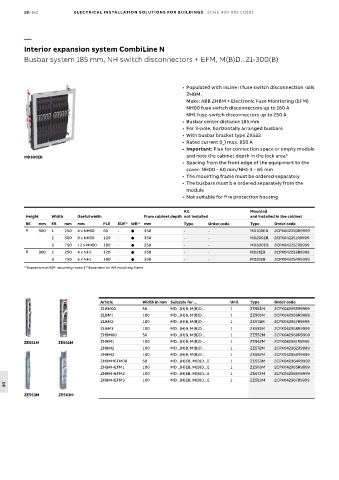

18/162 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Busbar system 185 mm, NH switch disconnectors + EFM, M(B)D...21-300(B)

• Populated with InLine II fuse switch disconnection rails
ZHBM,
Make: ABB ZHBM + Electronic Fuse Monitoring (EFM)
NH00 fuse switch disconnectors up to 160 A
NH1 fuse-switch disconnectors up to 250 A
• Busbar center distance 185 mm
• For 3-pole, horizontally arranged busbars
• With busbar bracket type ZX522
• Rated current (I ) max. 850 A
n
• Important: Plan for connection space or empty module
MD300EB and note the cabinet depth in the lock area*
• Spacing from the front edge of the equipment to the
cover: NH00 – 60 mm/NH1-3 – 65 mm
• The mounting frame must be ordered separately
• The busbars must b e ordered separately from the
module
• Not suitable for fire protection housing

Kit Mounted
Height Width Useful width From cabinet depth not installed and installed in the cabinet
RE mm FB mm mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
6 900 1 250 4 x NH00 60 -  350 - - MD100EB 2CPX042250R9999
2 500 8 x NH00 120 -  350 - - MD200EB 2CPX042251R9999
3 750 12 x NH00 180 -  350 - - MD300EB 2CPX042252R9999
6 900 2 250 4 x NH1 120 -  350 - - MD21EB 2CPX042253R9999
3 750 6 x NH1 180 -  350 - - MD31EB 2CPX042254R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

Article Width in mm Suitable for ... Unit Type Order code
ZLBM00 50 MD...(H)B, M(B)D... 1 ZE551M 2CPX042955R9999
ZLBM1 100 MD...(H)B, M(B)D... 1 ZE561M 2CPX042956R9999
ZLBM2 100 MD...(H)B, M(B)D... 1 ZE571M 2CPX042957R9999
ZLBM3 100 MD...(H)B, M(B)D... 1 ZE581M 2CPX042958R9999
ZHBM00 50 MD...(H)B, M(B)D... 1 ZE552M 2CPX042960R9999
ZE551M ZE561M ZHBM1 100 MD...(H)B, M(B)D... 1 ZE562M 2CPX042961R9999
ZHBM2 100 MD...(H)B, M(B)D... 1 ZE572M 2CPX042962R9999
ZHBM3 100 MD...(H)B, M(B)D... 1 ZE582M 2CPX042963R9999
ZHBM+EFM00 50 MD...(H)EB, M(B)D...E 1 ZE553M 2CPX042964R9999
ZHBM+EFM1 100 MD...(H)EB, M(B)D...E 1 ZE563M 2CPX042965R9999
ZHBM+EFM2 100 MD...(H)EB, M(B)D...E 1 ZE573M 2CPX042966R9999
ZHBM+EFM3 100 MD...(H)EB, M(B)D...E 1 ZE583M 2CPX042967R9999
18
ZE553M ZE563M
