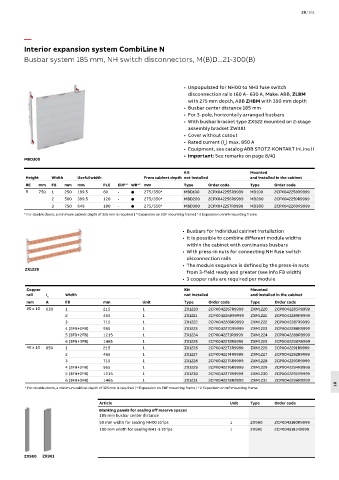

Interior expansion system CombiLine N Interior expansion system CombiLine N
Busbar system 185 mm, NH switch disconnectors, M(B)D...21-300(B) Busbar system 185 mm, NH switch disconnectors, M(B)D...21-300(B)

• Unpopulated for NH00 to NH3 fuse switch
disconnection rails 160 A– 630 A, Make: ABB, ZLBM
with 275 mm depth, ABB ZHBM with 350 mm depth
• Busbar center distance 185 mm
• For 3-pole, horizontally arranged busbars
• With busbar bracket type ZX522 mounted on 2-stage
assembly bracket ZW481
• Cover without cutout
• Rated current (I ) max. 850 A
n
• Equipment, see catalog ABB STOTZ-KONTAKT InLine II
• Important: See remarks on page 8/41
MBD300
Kit Mounted
Height Width Useful width From cabinet depth not installed and installed in the cabinet
RE mm FB mm mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
5 750 1 250 199.5 60 -  275/350* MBD100 2CPX042255R9999 MD100 2CPX042258R9999
2 500 399.5 120 -  275/350* MBD200 2CPX042256R9999 MD200 2CPX042259R9999
3 750 649 180 -  275/350* MBD300 2CPX042257R9999 MD300 2CPX042260R9999
* For double doors, a minimum cabinet depth of 325 mm is required | * 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Busbars for individual cabinet installation
• It is possible to combine different module widths
within the cabinet with continuous busbars
• With press-in nuts for connecting NH fuse switch
disconnection rails
• The module sequence is defined by the press-in nuts
ZX1228
from 3-field ready and greater (see info FB width)
• 3 copper rails are required per module
Copper Kit Mounted
rail I Width not installed and installed in the cabinet
n
mm A FB mm Unit Type Order code Type Order code
30 x 10 630 1 215 1 ZX1220 2CPX042267R9999 ZXM1220 2CPX042285R9999
2 465 1 ZX1221 2CPX042268R9999 ZXM1221 2CPX042286R9999
3 715 1 ZX1222 2CPX042269R9999 ZXM1222 2CPX042287R9999
4 (2FB+2FB) 965 1 ZX1223 2CPX042270R9999 ZXM1223 2CPX042288R9999
5 (3FB+2FB) 1215 1 ZX1224 2CPX042271R9999 ZXM1224 2CPX042289R9999
6 (3FB+3FB) 1465 1 ZX1225 2CPX042272R9999 ZXM1225 2CPX042290R9999
40 x 10 850 1 215 1 ZX1226 2CPX042273R9999 ZXM1226 2CPX042291R9999
2 465 1 ZX1227 2CPX042274R9999 ZXM1227 2CPX042292R9999
3 715 1 ZX1228 2CPX042275R9999 ZXM1228 2CPX042293R9999
4 (2FB+2FB) 965 1 ZX1229 2CPX042276R9999 ZXM1229 2CPX042294R9999
5 (3FB+2FB) 1215 1 ZX1230 2CPX042277R9999 ZXM1230 2CPX042295R9999
6 (3FB+3FB) 1465 1 ZX1231 2CPX042278R9999 ZXM1231 2CPX042296R9999
18
* For double doors, a minimum cabinet depth of 325 mm is required | * 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

Article Unit Type Order code
Blanking panels for sealing off reserve spaces
185 mm busbar center distance
50 mm width for sealing NH00 strips 1 ZX960 2CPX043180R9999
100 mm width for sealing NH1-3 strips 1 ZX961 2CPX043181R9999

ZX960 ZX961
