18/153

—

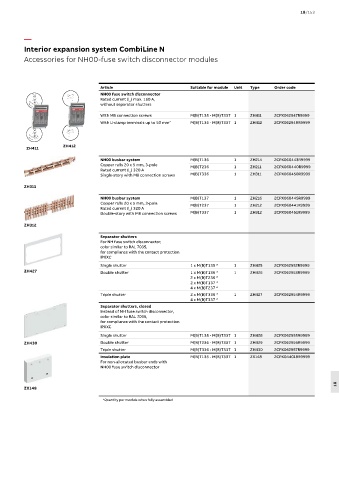

Interior expansion system CombiLine N
Accessories for NH00-fuse switch disconnector modules

Article Suitable for module Unit Type Order code
NH00 fuse switch disconnector
Rated current (I ) max. 160 A,
n
without separator shutters
With M8 connection screws M(B)T135 - M(B)T337 1 ZH411 2CPX062947R9999
With U-clamp terminals up to 50 mm 2 M(B)T135 - M(B)T337 1 ZH412 2CPX062948R9999

ZH412
ZH411
NH00 busbar system M(B)T136 1 ZH214 2CPX060443R9999
Copper rails 20 x 5 mm, 3-pole M(B)T236 1 ZH211 2CPX060440R9999
Rated current (I ) 320 A
n
Single-story with M8 connection screws M(B)T336 1 ZH311 2CPX060450R9999
ZH311

NH00 busbar system M(B)T137 1 ZH216 2CPX060445R9999
Copper rails 20 x 5 mm, 3-pole M(B)T237 1 ZH212 2CPX060441R9999
Rated current (I ) 320 A
n
Double-story with M8 connection screws M(B)T337 1 ZH312 2CPX060451R9999
ZH312
Separator shutters
For NH fuse switch disconnector,
color similar to RAL 7035,
for compliance with the contact protection
IPXXC
Single shutter 1 x M(B)T135 * 1 ZH425 2CPX062952R9999
ZH427 Double shutter 1 x M(B)T136 * 1 ZH426 2CPX062953R9999
2 x M(B)T236 *
2 x M(B)T137 *
4 x M(B)T237 *
Triple shutter 2 x M(B)T336 * 1 ZH427 2CPX062954R9999
4 x M(B)T337 *
Separator shutters, closed
Instead of NH fuse switch disconnector,
color similar to RAL 7035,
for compliance with the contact protection
IPXXC
Single shutter M(B)T135 - M(B)T337 1 ZH428 2CPX062955R9999
ZH430 Double shutter M(B)T236 - M(B)T337 1 ZH429 2CPX062956R9999
Triple shutter M(B)T336 - M(B)T337 1 ZH430 2CPX062957R9999
Insulation plate M(B)T135 - M(B)T337 1 ZX148 2CPX044018R9999
For non-allocated busbar ends with
NH00 fuse switch disconnector

18
ZX148
*Quantity per module when fully assembled
