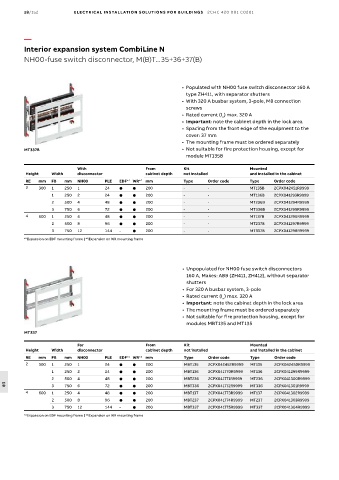

18/152 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
NH00-fuse switch disconnector, M(B)T...35+36+37(B)

• Populated with NH00 fuse switch disconnector 160 A
type ZH411, with separator shutters
• With 320 A busbar system, 3-pole, M8 connection
screws
• Rated current (I ) max. 320 A
n
• Important: note the cabinet depth in the lock area
• Spacing from the front edge of the equipment to the
cover: 37 mm
• The mounting frame must be ordered separately
MT337B • Not suitable for fire protection housing, except for
module MT135B
With From Kit Mounted
Height Width disconnector cabinet depth not installed and installed in the cabinet
RE mm FB mm NH00 PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 1 24   200 - - MT135B 2CPX042451R9999
1 250 2 24   200 - - MT136B 2CPX041293R9999
2 500 4 48   200 - - MT236B 2CPX041294R9999
3 750 6 72   200 - - MT336B 2CPX041295R9999
4 600 1 250 4 48   200 - - MT137B 2CPX041296R9999
2 500 8 96   200 - - MT237B 2CPX041297R9999
3 750 12 144 -  200 - - MT337B 2CPX041298R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Unpopulated for NH00 fuse switch disconnectors
160 A, Makes: ABB (ZH411, ZH412), without separator
shutters
• For 320 A busbar system, 3-pole
• Rated current (I ) max. 320 A
n
• Important: note the cabinet depth in the lock area
• The mounting frame must be ordered separately
• Not suitable for fire protection housing, except for
modules MBT135 and MT135
MT337

For From Kit Mounted
Height Width disconnector cabinet depth not installed and installed in the cabinet
RE mm FB mm NH00 PLE EDF* WR* 2 mm Type Order code Type Order code
1
2 300 1 250 1 24   200 MBT135 2CPX042452R9999 MT135 2CPX042450R9999
1 250 2 24   200 MBT136 2CPX041770R9999 MT136 2CPX041299R9999
2 500 4 48   200 MBT236 2CPX041771R9999 MT236 2CPX041300R9999
3 750 6 72   200 MBT336 2CPX041772R9999 MT336 2CPX041301R9999
18
4 600 1 250 4 48   200 MBT137 2CPX041773R9999 MT137 2CPX041302R9999
2 500 8 96   200 MBT237 2CPX041774R9999 MT237 2CPX041303R9999
3 750 12 144 -  200 MBT337 2CPX041775R9999 MT337 2CPX041304R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
