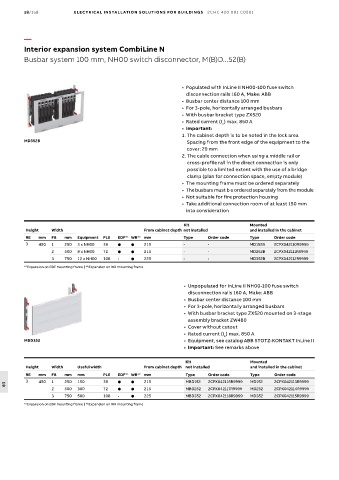

18/158 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
Busbar system 100 mm, NH00 switch disconnector, M(B)D...52(B)

• Populated with InLine II NH00-100 fuse switch
disconnection rails 160 A, Make: ABB
• Busbar center distance 100 mm
• For 3-pole, horizontally arranged busbars
• With busbar bracket type ZX520
• Rated current (I ) max. 850 A
n
• Important:
1. The cabinet depth is to be noted in the lock area
MD352B Spacing from the front edge of the equipment to the
cover: 29 mm
2. The cable connection when using a middle rail or
cross-profile rail in the direct connection is only
possible to a limited extent with the use of a bridge
clamp (plan for connection space, empty module)
• The mounting frame must be ordered separately
• The busbars must b e ordered separately from the module
• Not suitable for fire protection housing
• Take additional connection room of at least 150 mm
into consideration

Kit Mounted
Height Width From cabinet depth not installed and installed in the cabinet
RE mm FB mm Equipment PLE EDF* WR* 2 mm Type Order code Type Order code
1
3 450 1 250 3 x NH00 36   215 - - MD152B 2CPX042110R9999
2 500 8 x NH00 72   215 - - MD252B 2CPX042111R9999
3 750 12 x NH00 108 -  225 - - MD352B 2CPX042112R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

• Unpopulated for InLine II NH00-100 fuse switch
disconnection rails 160 A, Make: ABB
• Busbar center distance 100 mm
• For 3-pole, horizontally arranged busbars
• With busbar bracket type ZX520 mounted on 3-stage
assembly bracket ZW480
• Cover without cutout
• Rated current (I ) max. 850 A
n
MBD352 • Equipment, see catalog ABB STOTZ-KONTAKT InLine II
• Important: See remarks above

Kit Mounted
Height Width Useful width From cabinet depth not installed and installed in the cabinet
RE mm FB mm mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
3 450 1 250 150 36   215 MBD152 2CPX042116R9999 MD152 2CPX042113R9999
2 500 300 72   215 MBD252 2CPX042117R9999 MD252 2CPX042114R9999
18
3 750 500 108 -  225 MBD352 2CPX042118R9999 MD352 2CPX042115R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
