18/163

—

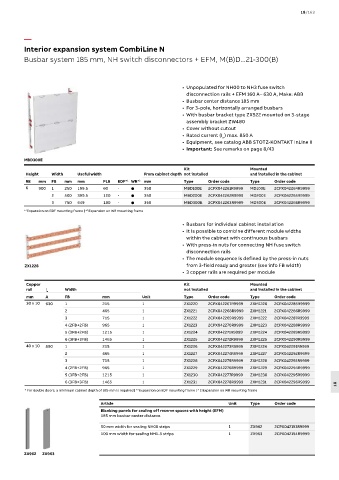

Interior expansion system CombiLine N
Busbar system 185 mm, NH switch disconnectors + EFM, M(B)D...21-300(B)

• Unpopulated for NH00 to NH3 fuse switch
disconnection rails + EFM 160 A– 630 A, Make: ABB
• Busbar center distance 185 mm
• For 3-pole, horizontally arranged busbars
• With busbar bracket type ZX522 mounted on 3-stage
assembly bracket ZW480
• Cover without cutout
• Rated current (I ) max. 850 A
n
• Equipment, see catalog ABB STOTZ-KONTAKT InLine II
• Important: See remarks on page 8/43
MBD300E
Kit Mounted
Height Width Useful width From cabinet depth not installed and installed in the cabinet
RE mm FB mm mm PLE EDF* WR* 2 mm Type Order code Type Order code
1
6 900 1 250 199.5 60 -  350 MBD100E 2CPX042261R9999 MD100E 2CPX042264R9999
2 500 399.5 120 -  350 MBD200E 2CPX042262R9999 MD200E 2CPX042265R9999
3 750 649 180 -  350 MBD300E 2CPX042263R9999 MD300E 2CPX042266R9999
* 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame
• Busbars for individual cabinet installation
• It is possible to combine different module widths
within the cabinet with continuous busbars
• With press-in nuts for connecting NH fuse switch
disconnection rails
• The module sequence is defined by the press-in nuts
ZX1228 from 3-field ready and greater (see info FB width)
• 3 copper rails are required per module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
30 x 10 630 1 215 1 ZX1220 2CPX042267R9999 ZXM1220 2CPX042285R9999
2 465 1 ZX1221 2CPX042268R9999 ZXM1221 2CPX042286R9999
3 715 1 ZX1222 2CPX042269R9999 ZXM1222 2CPX042287R9999
4 (2FB+2FB) 965 1 ZX1223 2CPX042270R9999 ZXM1223 2CPX042288R9999
5 (3FB+2FB) 1215 1 ZX1224 2CPX042271R9999 ZXM1224 2CPX042289R9999
6 (3FB+3FB) 1465 1 ZX1225 2CPX042272R9999 ZXM1225 2CPX042290R9999
40 x 10 850 1 215 1 ZX1226 2CPX042273R9999 ZXM1226 2CPX042291R9999
2 465 1 ZX1227 2CPX042274R9999 ZXM1227 2CPX042292R9999
3 715 1 ZX1228 2CPX042275R9999 ZXM1228 2CPX042293R9999
4 (2FB+2FB) 965 1 ZX1229 2CPX042276R9999 ZXM1229 2CPX042294R9999
5 (3FB+2FB) 1215 1 ZX1230 2CPX042277R9999 ZXM1230 2CPX042295R9999
6 (3FB+3FB) 1465 1 ZX1231 2CPX042278R9999 ZXM1231 2CPX042296R9999
18
* For double doors, a minimum cabinet depth of 325 mm is required | * 1 Expansion on EDF mounting frame | * 2 Expansion on WR mounting frame

Article Unit Type Order code
Blanking panels for sealing off reserve spaces with height (EFM)
185 mm busbar center distance
50 mm width for sealing NH00 strips 1 ZX962 2CPX042193R9999
100 mm width for sealing NH1-3 strips 1 ZX963 2CPX042194R9999

ZX962 ZX963
