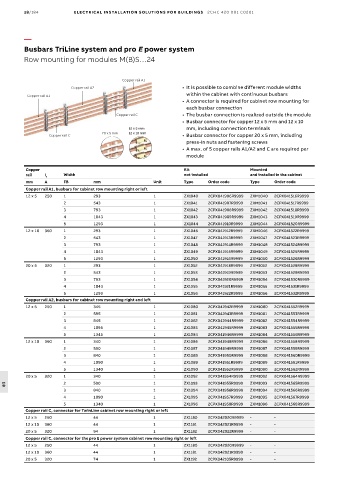

18/184 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busbars TriLine system and pro E power system
Row mounting for modules M(B)S…24

Copper rail A1
Copper rail A2 • It is possible to combine different module widths
Copper rail A1 within the cabinet with continuous busbars
• A connector is required for cabinet row mounting for
each busbar connection
Copper rail C • The busbar connection is realized outside the module
• Busbar connector for copper 12 x 5 mm and 12 x 10
12 x 5 mm mm, including connection terminals
20 x 5 mm 12 x 10 mm
Copper rail C • Busbar connector for copper 20 x 5 mm, including
press-in nuts and fastening screws
• A max. of 5 copper rails A1/A2 and C are required per
module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for cabinet row mounting right or left
12 x 5 250 1 293 1 ZX1040 2CPX041906R9999 ZXM1040 2CPX041516R9999
2 543 1 ZX1041 2CPX041907R9999 ZXM1041 2CPX041517R9999
3 793 1 ZX1042 2CPX041908R9999 ZXM1042 2CPX041518R9999
4 1043 1 ZX1043 2CPX041909R9999 ZXM1043 2CPX041519R9999
5 1293 1 ZX1044 2CPX041910R9999 ZXM1044 2CPX041520R9999
12 x 10 360 1 293 1 ZX1046 2CPX041912R9999 ZXM1046 2CPX041522R9999
2 543 1 ZX1047 2CPX041913R9999 ZXM1047 2CPX041523R9999
3 793 1 ZX1048 2CPX041914R9999 ZXM1048 2CPX041524R9999
4 1043 1 ZX1049 2CPX041915R9999 ZXM1049 2CPX041525R9999
5 1293 1 ZX1050 2CPX041916R9999 ZXM1050 2CPX041526R9999
20 x 5 320 1 293 1 ZX1052 2CPX041918R9999 ZXM1052 2CPX041528R9999
2 543 1 ZX1053 2CPX041919R9999 ZXM1053 2CPX041529R9999
3 793 1 ZX1054 2CPX041920R9999 ZXM1054 2CPX041530R9999
4 1043 1 ZX1055 2CPX041921R9999 ZXM1055 2CPX041531R9999
5 1293 1 ZX1056 2CPX041922R9999 ZXM1056 2CPX041532R9999
Copper rail A2, busbars for cabinet row mounting right and left
12 x 5 250 1 345 1 ZX1080 2CPX041942R9999 ZXM1080 2CPX041552R9999
2 595 1 ZX1081 2CPX041943R9999 ZXM1081 2CPX041553R9999
3 845 1 ZX1082 2CPX041944R9999 ZXM1082 2CPX041554R9999
4 1095 1 ZX1083 2CPX041945R9999 ZXM1083 2CPX041555R9999
5 1345 1 ZX1084 2CPX041946R9999 ZXM1084 2CPX041556R9999
12 x 10 360 1 340 1 ZX1086 2CPX041948R9999 ZXM1086 2CPX041558R9999
2 590 1 ZX1087 2CPX041949R9999 ZXM1087 2CPX041559R9999
3 840 1 ZX1088 2CPX041950R9999 ZXM1088 2CPX041560R9999
4 1090 1 ZX1089 2CPX041951R9999 ZXM1089 2CPX041561R9999
5 1340 1 ZX1090 2CPX041952R9999 ZXM1090 2CPX041562R9999
20 x 5 320 1 340 1 ZX1092 2CPX041954R9999 ZXM1092 2CPX041564R9999
2 590 1 ZX1093 2CPX041955R9999 ZXM1093 2CPX041565R9999
18
3 840 1 ZX1094 2CPX041956R9999 ZXM1094 2CPX041566R9999
4 1090 1 ZX1095 2CPX041957R9999 ZXM1095 2CPX041567R9999
5 1340 1 ZX1096 2CPX041958R9999 ZXM1096 2CPX041568R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
12 x 5 250 44 1 ZX1180 2CPX042020R9999 - -
12 x 10 360 44 1 ZX1181 2CPX042021R9999 - -
20 x 5 320 94 1 ZX1182 2CPX042022R9999 - -
Copper rail C, connector for the pro E power system cabinet row mounting right or left
12 x 5 250 44 1 ZX1180 2CPX042020R9999 - -
12 x 10 360 44 1 ZX1181 2CPX042021R9999 - -
20 x 5 320 74 1 ZX1192 2CPX042105R9999 - -
