18/179

—

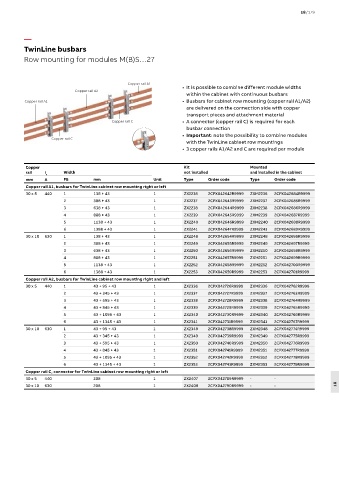

TwinLine busbars
Row mounting for modules M(B)S…27

Copper rail A1
• It is possible to combine different module widths
Copper rail A2
within the cabinet with continuous busbars
Copper rail A1 • Busbars for cabinet row mounting (copper rail A1/A2)
are delivered on the connection side with copper
transport pieces and attachment material
Copper rail C • A connector (copper rail C) is required for each
busbar connection
• Important: note the possibility to combine modules
Copper rail C
with the TwinLine cabinet row mountings
• 3 copper rails A1/A2 and C are required per module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for TwinLine cabinet row mounting right or left
30 x 5 440 1 138 + 43 1 ZX2236 2CPX042642R9999 ZXM2236 2CPX042684R9999
2 388 + 43 1 ZX2237 2CPX042643R9999 ZXM2237 2CPX042685R9999
3 638 + 43 1 ZX2238 2CPX042644R9999 ZXM2238 2CPX042686R9999
4 888 + 43 1 ZX2239 2CPX042645R9999 ZXM2239 2CPX042687R9999
5 1138 + 43 1 ZX2240 2CPX042646R9999 ZXM2240 2CPX042688R9999
6 1388 + 43 1 ZX2241 2CPX042647R9999 ZXM2241 2CPX042689R9999
30 x 10 630 1 138 + 43 1 ZX2248 2CPX042654R9999 ZXM2248 2CPX042696R9999
2 388 + 43 1 ZX2249 2CPX042655R9999 ZXM2249 2CPX042697R9999
3 638 + 43 1 ZX2250 2CPX042656R9999 ZXM2250 2CPX042698R9999
4 888 + 43 1 ZX2251 2CPX042657R9999 ZXM2251 2CPX042699R9999
5 1138 + 43 1 ZX2252 2CPX042658R9999 ZXM2252 2CPX042700R9999
6 1388 + 43 1 ZX2253 2CPX042659R9999 ZXM2253 2CPX042701R9999
Copper rail A2, busbars for TwinLine cabinet row mounting right and left
30 x 5 440 1 43 + 95 + 43 1 ZX2336 2CPX042726R9999 ZXM2336 2CPX042762R9999
2 43 + 345 + 43 1 ZX2337 2CPX042727R9999 ZXM2337 2CPX042763R9999
3 43 + 595 + 43 1 ZX2338 2CPX042728R9999 ZXM2338 2CPX042764R9999
4 43 + 845 + 43 1 ZX2339 2CPX042729R9999 ZXM2339 2CPX042765R9999
5 43 + 1095 + 43 1 ZX2340 2CPX042730R9999 ZXM2340 2CPX042766R9999
6 43 + 1345 + 43 1 ZX2341 2CPX042731R9999 ZXM2341 2CPX042767R9999
30 x 10 630 1 43 + 95 + 43 1 ZX2348 2CPX042738R9999 ZXM2348 2CPX042774R9999
2 43 + 345 + 43 1 ZX2349 2CPX042739R9999 ZXM2349 2CPX042775R9999
3 43 + 595 + 43 1 ZX2350 2CPX042740R9999 ZXM2350 2CPX042776R9999
4 43 + 845 + 43 1 ZX2351 2CPX042741R9999 ZXM2351 2CPX042777R9999
5 43 + 1095 + 43 1 ZX2352 2CPX042742R9999 ZXM2352 2CPX042778R9999
6 43 + 1345 + 43 1 ZX2353 2CPX042743R9999 ZXM2353 2CPX042779R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
30 x 5 440 208 1 ZX2407 2CPX042789R9999 - -
30 x 10 630 208 1 ZX2408 2CPX042790R9999 - - 18
