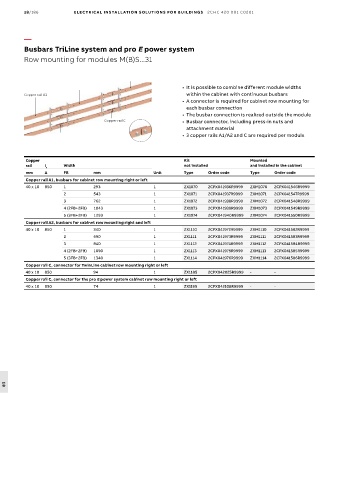

18/186 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busbars TriLine system and pro E power system
Row mounting for modules M(B)S...31

• It is possible to combine different module widths
Copper rail A1 within the cabinet with continuous busbars
• A connector is required for cabinet row mounting for
each busbar connection
• The busbar connection is realized outside the module
Copper rail C • Busbar connector, including press-in nuts and
attachment material
• 3 copper rails A1/A2 and C are required per module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for cabinet row mounting right or left
40 x 10 850 1 293 1 ZX1070 2CPX041936R9999 ZXM1070 2CPX041546R9999
2 543 1 ZX1071 2CPX041937R9999 ZXM1071 2CPX041547R9999
3 762 1 ZX1072 2CPX041938R9999 ZXM1072 2CPX041548R9999
4 (2FB+2FB) 1043 1 ZX1073 2CPX041939R9999 ZXM1073 2CPX041549R9999
5 (3FB+2FB) 1293 1 ZX1074 2CPX041940R9999 ZXM1074 2CPX041550R9999
Copper rail A2, busbars for cabinet row mounting right and left
40 x 10 850 1 340 1 ZX1110 2CPX041972R9999 ZXM1110 2CPX041582R9999
2 590 1 ZX1111 2CPX041973R9999 ZXM1111 2CPX041583R9999
3 840 1 ZX1112 2CPX041974R9999 ZXM1112 2CPX041584R9999
4 (2FB+2FB) 1090 1 ZX1113 2CPX041975R9999 ZXM1113 2CPX041585R9999
5 (3FB+2FB) 1340 1 ZX1114 2CPX041976R9999 ZXM1114 2CPX041586R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
40 x 10 850 94 1 ZX1185 2CPX042025R9999 - -
Copper rail C, connector for the pro E power system cabinet row mounting right or left
40 x 10 850 74 1 ZX1195 2CPX042108R9999 - -
