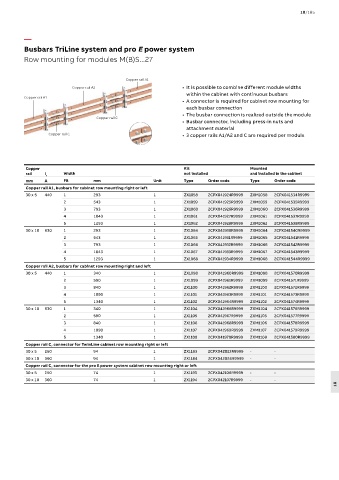

Busbars TriLine system and pro E power system
Row mounting for modules M(B)S...27

Copper rail A1
Copper rail A2 • It is possible to combine different module widths
within the cabinet with continuous busbars
Copper rail A1
• A connector is required for cabinet row mounting for
each busbar connection
• The busbar connection is realized outside the module
Copper rail C
• Busbar connector, including press-in nuts and
attachment material
Copper rail C • 3 copper rails A1/A2 and C are required per module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for cabinet row mounting right or left
30 x 5 440 1 293 1 ZX1058 2CPX041924R9999 ZXM1058 2CPX041534R9999
2 543 1 ZX1059 2CPX041925R9999 ZXM1059 2CPX041535R9999
3 793 1 ZX1060 2CPX041926R9999 ZXM1060 2CPX041536R9999
4 1043 1 ZX1061 2CPX041927R9999 ZXM1061 2CPX041537R9999
5 1293 1 ZX1062 2CPX041928R9999 ZXM1062 2CPX041538R9999
30 x 10 630 1 293 1 ZX1064 2CPX041930R9999 ZXM1064 2CPX041540R9999
2 543 1 ZX1065 2CPX041931R9999 ZXM1065 2CPX041541R9999
3 793 1 ZX1066 2CPX041932R9999 ZXM1066 2CPX041542R9999
4 1043 1 ZX1067 2CPX041933R9999 ZXM1067 2CPX041543R9999
5 1293 1 ZX1068 2CPX041934R9999 ZXM1068 2CPX041544R9999
Copper rail A2, busbars for cabinet row mounting right and left
30 x 5 440 1 340 1 ZX1098 2CPX041960R9999 ZXM1098 2CPX041570R9999
2 590 1 ZX1099 2CPX041961R9999 ZXM1099 2CPX041571R9999
3 840 1 ZX1100 2CPX041962R9999 ZXM1100 2CPX041572R9999
4 1090 1 ZX1101 2CPX041963R9999 ZXM1101 2CPX041573R9999
5 1340 1 ZX1102 2CPX041964R9999 ZXM1102 2CPX041574R9999
30 x 10 630 1 340 1 ZX1104 2CPX041966R9999 ZXM1104 2CPX041576R9999
2 590 1 ZX1105 2CPX041967R9999 ZXM1105 2CPX041577R9999
3 840 1 ZX1106 2CPX041968R9999 ZXM1106 2CPX041578R9999
4 1090 1 ZX1107 2CPX041969R9999 ZXM1107 2CPX041579R9999
5 1340 1 ZX1108 2CPX041970R9999 ZXM1108 2CPX041580R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
30 x 5 250 94 1 ZX1183 2CPX042023R9999 - -
30 x 10 360 94 1 ZX1184 2CPX042024R9999 - -
Copper rail C, connector for the pro E power system cabinet row mounting right or left
30 x 5 250 74 1 ZX1193 2CPX042106R9999 - -
30 x 10 360 74 1 ZX1194 2CPX042107R9999 - -
