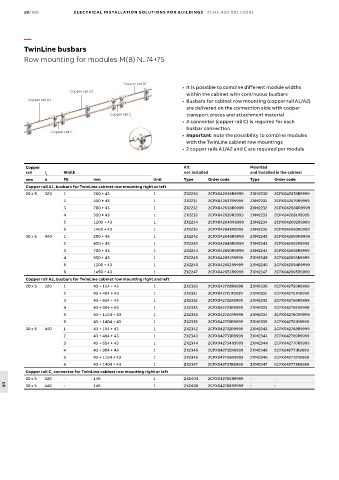

18/180 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
TwinLine busbars
Row mounting for modules M(B) N..74+75

Copper rail A1
• It is possible to combine different module widths
Copper rail A2
within the cabinet with continuous busbars
Copper rail A1 • Busbars for cabinet row mounting (copper rail A1/A2)
are delivered on the connection side with copper
Copper rail C transport pieces and attachment material
• A connector (copper rail C) is required for each
busbar connection
Copper rail C
• Important: note the possibility to combine modules
with the TwinLine cabinet row mountings
• 2 copper rails A1/A2 and C are required per module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for TwinLine cabinet row mounting right or left
20 x 5 320 1 200 + 43 1 ZX2230 2CPX042636R9999 ZXM2230 2CPX042678R9999
2 450 + 43 1 ZX2231 2CPX042637R9999 ZXM2231 2CPX042679R9999
3 700 + 43 1 ZX2232 2CPX042638R9999 ZXM2232 2CPX042680R9999
4 950 + 43 1 ZX2233 2CPX042639R9999 ZXM2233 2CPX042681R9999
5 1200 + 43 1 ZX2234 2CPX042640R9999 ZXM2234 2CPX042682R9999
6 1450 + 43 1 ZX2235 2CPX042641R9999 ZXM2235 2CPX042683R9999
30 x 5 440 1 200 + 43 1 ZX2242 2CPX042648R9999 ZXM2242 2CPX042690R9999
2 450 + 43 1 ZX2243 2CPX042649R9999 ZXM2243 2CPX042691R9999
3 700 + 43 1 ZX2244 2CPX042650R9999 ZXM2244 2CPX042692R9999
4 950 + 43 1 ZX2245 2CPX042651R9999 ZXM2245 2CPX042693R9999
5 1200 + 43 1 ZX2246 2CPX042652R9999 ZXM2246 2CPX042694R9999
6 1450 + 43 1 ZX2247 2CPX042653R9999 ZXM2247 2CPX042695R9999
Copper rail A2, busbars for TwinLine cabinet row mounting right and left
20 x 5 320 1 43 + 154 + 43 1 ZX2330 2CPX042720R9999 ZXM2330 2CPX042756R9999
2 43 + 404 + 43 1 ZX2331 2CPX042721R9999 ZXM2331 2CPX042757R9999
3 43 + 654 + 43 1 ZX2332 2CPX042722R9999 ZXM2332 2CPX042758R9999
4 43 + 904 + 43 1 ZX2333 2CPX042723R9999 ZXM2333 2CPX042759R9999
5 43 + 1154 + 43 1 ZX2334 2CPX042724R9999 ZXM2334 2CPX042760R9999
6 43 + 1404 + 43 1 ZX2335 2CPX042725R9999 ZXM2335 2CPX042761R9999
30 x 5 440 1 43 + 154 + 43 1 ZX2342 2CPX042732R9999 ZXM2342 2CPX042768R9999
2 43 + 404 + 43 1 ZX2343 2CPX042733R9999 ZXM2343 2CPX042769R9999
3 43 + 654 + 43 1 ZX2344 2CPX042734R9999 ZXM2344 2CPX042770R9999
4 43 + 904 + 43 1 ZX2345 2CPX042735R9999 ZXM2345 2CPX042771R9999
5 43 + 1154 + 43 1 ZX2346 2CPX042736R9999 ZXM2346 2CPX042772R9999
6 43 + 1404 + 43 1 ZX2347 2CPX042737R9999 ZXM2347 2CPX042773R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
20 x 5 320 - 149 1 ZX2404 2CPX042786R9999 - -
30 x 5 440 - 149 1 ZX2406 2CPX042788R9999 - -
