18/187

—

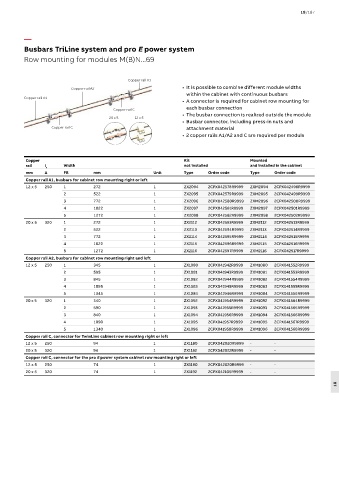

Busbars TriLine system and pro E power system
Row mounting for modules M(B)N...69

Copper rail A1
Copper rail A2 • It is possible to combine different module widths
within the cabinet with continuous busbars
Copper rail A1
• A connector is required for cabinet row mounting for
each busbar connection
Copper rail C
• The busbar connection is realized outside the module
20 x 5 12 x 5
• Busbar connector, including press-in nuts and
Copper rail C attachment material
• 2 copper rails A1/A2 and C are required per module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for cabinet row mounting right or left
12 x 5 250 1 272 1 ZX2094 2CPX042578R9999 ZXM2094 2CPX042498R9999
2 522 1 ZX2095 2CPX042579R9999 ZXM2095 2CPX042499R9999
3 772 1 ZX2096 2CPX042580R9999 ZXM2096 2CPX042500R9999
4 1022 1 ZX2097 2CPX042581R9999 ZXM2097 2CPX042501R9999
5 1272 1 ZX2098 2CPX042582R9999 ZXM2098 2CPX042502R9999
20 x 5 320 1 272 1 ZX2112 2CPX042593R9999 ZXM2112 2CPX042513R9999
2 522 1 ZX2113 2CPX042594R9999 ZXM2113 2CPX042514R9999
3 772 1 ZX2114 2CPX042595R9999 ZXM2114 2CPX042515R9999
4 1022 1 ZX2115 2CPX042596R9999 ZXM2115 2CPX042516R9999
5 1272 1 ZX2116 2CPX042597R9999 ZXM2116 2CPX042517R9999
Copper rail A2, busbars for cabinet row mounting right and left
12 x 5 250 1 345 1 ZX1080 2CPX041942R9999 ZXM1080 2CPX041552R9999
2 595 1 ZX1081 2CPX041943R9999 ZXM1081 2CPX041553R9999
3 845 1 ZX1082 2CPX041944R9999 ZXM1082 2CPX041554R9999
4 1095 1 ZX1083 2CPX041945R9999 ZXM1083 2CPX041555R9999
5 1345 1 ZX1084 2CPX041946R9999 ZXM1084 2CPX041556R9999
20 x 5 320 1 340 1 ZX1092 2CPX041954R9999 ZXM1092 2CPX041564R9999
2 590 1 ZX1093 2CPX041955R9999 ZXM1093 2CPX041565R9999
3 840 1 ZX1094 2CPX041956R9999 ZXM1094 2CPX041566R9999
4 1090 1 ZX1095 2CPX041957R9999 ZXM1095 2CPX041567R9999
5 1340 1 ZX1096 2CPX041958R9999 ZXM1096 2CPX041568R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
12 x 5 250 94 1 ZX1180 2CPX042020R9999 - -
20 x 5 320 94 1 ZX1182 2CPX042022R9999 - -
Copper rail C, connector for the pro E power system cabinet row mounting right or left
12 x 5 250 74 1 ZX1180 2CPX042020R9999 - -
20 x 5 320 74 1 ZX1192 2CPX042105R9999 - -

18
