18/189

—

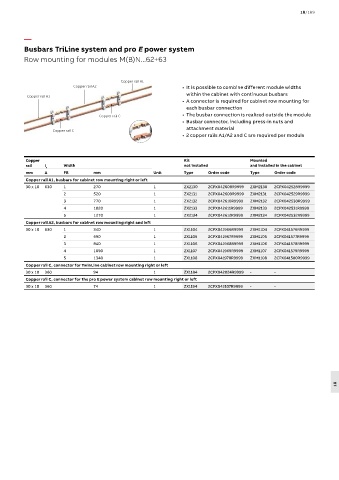

Busbars TriLine system and pro E power system
Row mounting for modules M(B)N...62+63

Copper rail A1
Copper rail A2 • It is possible to combine different module widths
within the cabinet with continuous busbars
Copper rail A1
• A connector is required for cabinet row mounting for
each busbar connection
Copper rail C • The busbar connection is realized outside the module
• Busbar connector, including press-in nuts and
attachment material
Copper rail C
• 2 copper rails A1/A2 and C are required per module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for cabinet row mounting right or left
30 x 10 630 1 270 1 ZX2130 2CPX042608R9999 ZXM2130 2CPX042528R9999
2 520 1 ZX2131 2CPX042609R9999 ZXM2131 2CPX042529R9999
3 770 1 ZX2132 2CPX042610R9999 ZXM2132 2CPX042530R9999
4 1020 1 ZX2133 2CPX042611R9999 ZXM2133 2CPX042531R9999
5 1270 1 ZX2134 2CPX042612R9999 ZXM2134 2CPX042532R9999
Copper rail A2, busbars for cabinet row mounting right and left
30 x 10 630 1 340 1 ZX1104 2CPX041966R9999 ZXM1104 2CPX041576R9999
2 590 1 ZX1105 2CPX041967R9999 ZXM1105 2CPX041577R9999
3 840 1 ZX1106 2CPX041968R9999 ZXM1106 2CPX041578R9999
4 1090 1 ZX1107 2CPX041969R9999 ZXM1107 2CPX041579R9999
5 1340 1 ZX1108 2CPX041970R9999 ZXM1108 2CPX041580R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
30 x 10 360 94 1 ZX1184 2CPX042024R9999 - -
Copper rail C, connector for the pro E power system cabinet row mounting right or left
30 x 10 360 74 1 ZX1194 2CPX042107R9999 - -

18
