18/181

—

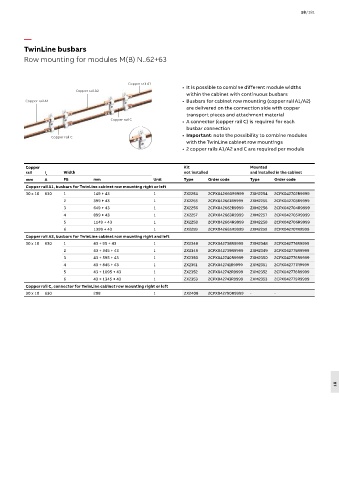

TwinLine busbars
Row mounting for modules M(B) N..62+63

Copper rail A1
• It is possible to combine different module widths
Copper rail A2
within the cabinet with continuous busbars
Copper rail A1 • Busbars for cabinet row mounting (copper rail A1/A2)
are delivered on the connection side with copper
transport pieces and attachment material
Copper rail C • A connector (copper rail C) is required for each
busbar connection
• Important: note the possibility to combine modules
Copper rail C
with the TwinLine cabinet row mountings
• 2 copper rails A1/A2 and C are required per module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for TwinLine cabinet row mounting right or left
30 x 10 630 1 149 + 43 1 ZX2254 2CPX042660R9999 ZXM2254 2CPX042702R9999
2 399 + 43 1 ZX2255 2CPX042661R9999 ZXM2255 2CPX042703R9999
3 649 + 43 1 ZX2256 2CPX042662R9999 ZXM2256 2CPX042704R9999
4 899 + 43 1 ZX2257 2CPX042663R9999 ZXM2257 2CPX042705R9999
5 1149 + 43 1 ZX2258 2CPX042664R9999 ZXM2258 2CPX042706R9999
6 1399 + 43 1 ZX2259 2CPX042665R9999 ZXM2259 2CPX042707R9999
Copper rail A2, busbars for TwinLine cabinet row mounting right and left
30 x 10 630 1 43 + 95 + 43 1 ZX2348 2CPX042738R9999 ZXM2348 2CPX042774R9999
2 43 + 345 + 43 1 ZX2349 2CPX042739R9999 ZXM2349 2CPX042775R9999
3 43 + 595 + 43 1 ZX2350 2CPX042740R9999 ZXM2350 2CPX042776R9999
4 43 + 845 + 43 1 ZX2351 2CPX042741R9999 ZXM2351 2CPX042777R9999
5 43 + 1095 + 43 1 ZX2352 2CPX042742R9999 ZXM2352 2CPX042778R9999
6 43 + 1345 + 43 1 ZX2353 2CPX042743R9999 ZXM2353 2CPX042779R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
30 x 10 630 208 1 ZX2408 2CPX042790R9999 - -

18
