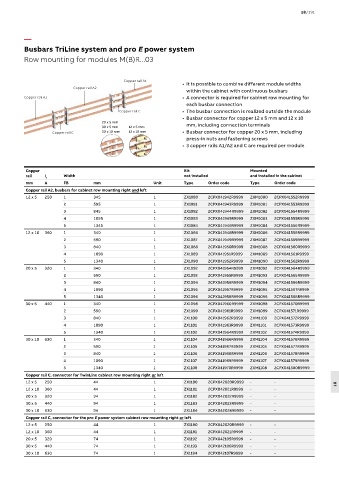

Busbars TriLine system and pro E power system
Row mounting for modules M(B)R...03

Copper rail A1
• It is possible to combine different module widths
Copper rail A2
within the cabinet with continuous busbars
Copper rail A1 • A connector is required for cabinet row mounting for
each busbar connection
Copper rail C • The busbar connection is realized outside the module
• Busbar connector for copper 12 x 5 mm and 12 x 10
20 x 5 mm
30 x 5 mm 12 x 5 mm mm, including connection terminals
Copper rail C 30 x 10 mm 12 x 10 mm • Busbar connector for copper 20 x 5 mm, including
press-in nuts and fastening screws
• 3 copper rails A1/A2 and C are required per module

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A2, busbars for cabinet row mounting right and left
12 x 5 250 1 345 1 ZX1080 2CPX041942R9999 ZXM1080 2CPX041552R9999
2 595 1 ZX1081 2CPX041943R9999 ZXM1081 2CPX041553R9999
3 845 1 ZX1082 2CPX041944R9999 ZXM1082 2CPX041554R9999
4 1095 1 ZX1083 2CPX041945R9999 ZXM1083 2CPX041555R9999
5 1345 1 ZX1084 2CPX041946R9999 ZXM1084 2CPX041556R9999
12 x 10 360 1 340 1 ZX1086 2CPX041948R9999 ZXM1086 2CPX041558R9999
2 590 1 ZX1087 2CPX041949R9999 ZXM1087 2CPX041559R9999
3 840 1 ZX1088 2CPX041950R9999 ZXM1088 2CPX041560R9999
4 1090 1 ZX1089 2CPX041951R9999 ZXM1089 2CPX041561R9999
5 1340 1 ZX1090 2CPX041952R9999 ZXM1090 2CPX041562R9999
20 x 5 320 1 340 1 ZX1092 2CPX041954R9999 ZXM1092 2CPX041564R9999
2 590 1 ZX1093 2CPX041955R9999 ZXM1093 2CPX041565R9999
3 840 1 ZX1094 2CPX041956R9999 ZXM1094 2CPX041566R9999
4 1090 1 ZX1095 2CPX041957R9999 ZXM1095 2CPX041567R9999
5 1340 1 ZX1096 2CPX041958R9999 ZXM1096 2CPX041568R9999
30 x 5 440 1 340 1 ZX1098 2CPX041960R9999 ZXM1098 2CPX041570R9999
2 590 1 ZX1099 2CPX041961R9999 ZXM1099 2CPX041571R9999
3 840 1 ZX1100 2CPX041962R9999 ZXM1100 2CPX041572R9999
4 1090 1 ZX1101 2CPX041963R9999 ZXM1101 2CPX041573R9999
5 1340 1 ZX1102 2CPX041964R9999 ZXM1102 2CPX041574R9999
30 x 10 630 1 340 1 ZX1104 2CPX041966R9999 ZXM1104 2CPX041576R9999
2 590 1 ZX1105 2CPX041967R9999 ZXM1105 2CPX041577R9999
3 840 1 ZX1106 2CPX041968R9999 ZXM1106 2CPX041578R9999
4 1090 1 ZX1107 2CPX041969R9999 ZXM1107 2CPX041579R9999
5 1340 1 ZX1108 2CPX041970R9999 ZXM1108 2CPX041580R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
12 x 5 250 44 1 ZX1180 2CPX042020R9999 - -
18
12 x 10 360 44 1 ZX1181 2CPX042021R9999 - -
20 x 5 320 94 1 ZX1182 2CPX042022R9999 - -
30 x 5 440 94 1 ZX1183 2CPX042023R9999 - -
30 x 10 630 94 1 ZX1184 2CPX042024R9999 - -
Copper rail C, connector for the pro E power system cabinet row mounting right or left
12 x 5 250 44 1 ZX1180 2CPX042020R9999 - -
12 x 10 360 44 1 ZX1181 2CPX042021R9999 - -
20 x 5 320 74 1 ZX1192 2CPX042105R9999 - -
30 x 5 440 74 1 ZX1193 2CPX042106R9999 - -
30 x 10 630 74 1 ZX1194 2CPX042107R9999 - -
