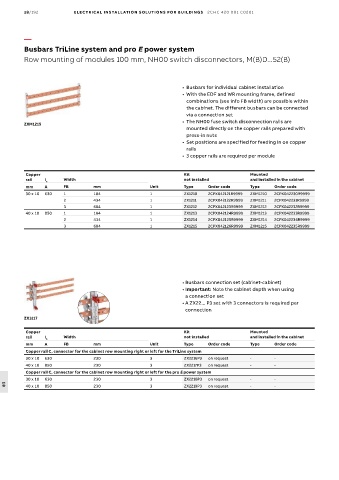

18/192 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busbars TriLine system and pro E power system
Row mounting of modules 100 mm, NH00 switch disconnectors, M(B)D...52(B)

• Busbars for individual cabinet installation
• With the EDF and WR mounting frame, defined
combinations (see info FB width) are possible within
the cabinet. The different busbars can be connected
via a connection set
• The NH00 fuse switch disconnection rails are
ZXM1215
mounted directly on the copper rails prepared with
press-in nuts
• Set positions are specified for feeding in on copper
rails
• 3 copper rails are required per module

Copper Kit Mounted
rail I Width not installed and installed in the cabinet
n
mm A FB mm Unit Type Order code Type Order code
30 x 10 630 1 184 1 ZX1210 2CPX042121R9999 ZXM1210 2CPX042230R9999
2 434 1 ZX1211 2CPX042122R9999 ZXM1211 2CPX042231R9999
3 684 1 ZX1212 2CPX042123R9999 ZXM1212 2CPX042232R9999
40 x 10 850 1 184 1 ZX1213 2CPX042124R9999 ZXM1213 2CPX042233R9999
2 434 1 ZX1214 2CPX042125R9999 ZXM1214 2CPX042234R9999
3 684 1 ZX1215 2CPX042126R9999 ZXM1215 2CPX042235R9999

• Busbars connection set (cabinet-cabinet)
• Important: Note the cabinet depth when using
a connection set
• A ZX22... P3 set with 3 connectors is required per
connection
ZX1217

Copper Kit Mounted
rail I Width not installed and installed in the cabinet
n
mm A FB mm Unit Type Order code Type Order code
Copper rail C, connector for the cabinet row mounting right or left for the TriLine system
30 x 10 630 230 3 ZX2216P3 on request - -
40 x 10 850 230 3 ZX2217P3 on request - -
Copper rail C, connector for the cabinet row mounting right or left for the pro E power system
30 x 10 630 230 3 ZX2218P3 on request - -
40 x 10 850 230 3 ZX2219P3 on request - -
18
