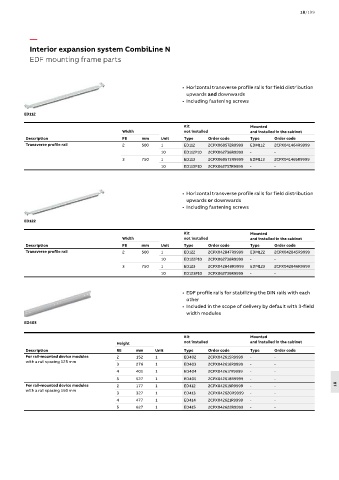

Interior expansion system CombiLine N
EDF mounting frame parts

• Horizontal transverse profile rails for field distribution
upwards and downwards
• Including fastening screws
ED112

Kit Mounted
Width not installed and installed in the cabinet
Description FB mm Unit Type Order code Type Order code
Transverse profile rail 2 500 1 ED112 2CPX068572R9999 EDM112 2CPX041464R9999
10 ED112P10 2CPX062736R9999 - -
3 750 1 ED113 2CPX068573R9999 EDM113 2CPX041465R9999
10 ED113P10 2CPX062737R9999 - -

• Horizontal transverse profile rails for field distribution
upwards or downwards
• Including fastening screws

ED122
Kit Mounted
Width not installed and installed in the cabinet
Description FB mm Unit Type Order code Type Order code
Transverse profile rail 2 500 1 ED122 2CPX042847R9999 EDM122 2CPX042845R9999
10 ED122P10 2CPX062738R9999 - -
3 750 1 ED123 2CPX042848R9999 EDM123 2CPX042846R9999
10 ED123P10 2CPX062739R9999 - -

• EDF profile rails for stabilizing the DIN rails with each
other
• Included in the scope of delivery by default with 3-field
width modules
ED403

Kit Mounted
Height not installed and installed in the cabinet
Description RE mm Unit Type Order code Type Order code
For rail-mounted device modules 2 152 1 ED402 2CPX042615R9999 - -
with a rail spacing 125 mm
3 276 1 ED403 2CPX042616R9999 - -
4 401 1 ED404 2CPX042617R9999 - -
5 527 1 ED405 2CPX042618R9999 - -
For rail-mounted device modules 2 177 1 ED412 2CPX042619R9999 - - 18
with a rail spacing 150 mm
3 327 1 ED413 2CPX042620R9999 - -
4 477 1 ED414 2CPX042621R9999 - -
5 627 1 ED415 2CPX042622R9999 - -
