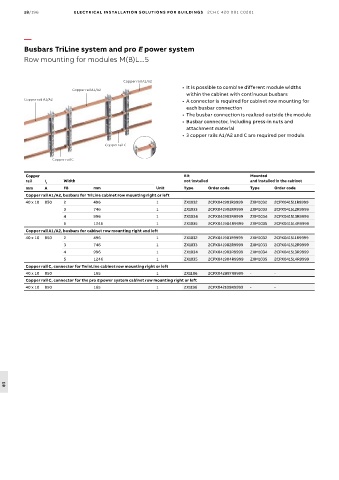

18/196 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busbars TriLine system and pro E power system
Row mounting for modules M(B)L...5

Copper rail A1/A2
• It is possible to combine different module widths
Copper rail A1/A2
within the cabinet with continuous busbars
Copper rail A1/A2 • A connector is required for cabinet row mounting for
each busbar connection
• The busbar connection is realized outside the module
• Busbar connector, including press-in nuts and
attachment material
• 3 copper rails A1/A2 and C are required per module
Copper rail C

Copper rail C

Copper Kit Mounted
rail I n Width not installed and installed in the cabinet
mm A FB mm Unit Type Order code Type Order code
Copper rail A1/A2, busbars for TriLine cabinet row mounting right or left
40 x 10 850 2 496 1 ZX1032 2CPX041901R9999 ZXM1032 2CPX041511R9999
3 746 1 ZX1033 2CPX041902R9999 ZXM1033 2CPX041512R9999
4 996 1 ZX1034 2CPX041903R9999 ZXM1034 2CPX041513R9999
5 1246 1 ZX1035 2CPX041904R9999 ZXM1035 2CPX041514R9999
Copper rail A1/A2, busbars for cabinet row mounting right and left
40 x 10 850 2 496 1 ZX1032 2CPX041901R9999 ZXM1032 2CPX041511R9999
3 746 1 ZX1033 2CPX041902R9999 ZXM1033 2CPX041512R9999
4 996 1 ZX1034 2CPX041903R9999 ZXM1034 2CPX041513R9999
5 1246 1 ZX1035 2CPX041904R9999 ZXM1035 2CPX041514R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
40 x 10 850 165 1 ZX1186 2CPX042887R9999 - -
Copper rail C, connector for the pro E power system cabinet row mounting right or left
40 x 10 850 165 1 ZX1196 2CPX042109R9999 - -

18
