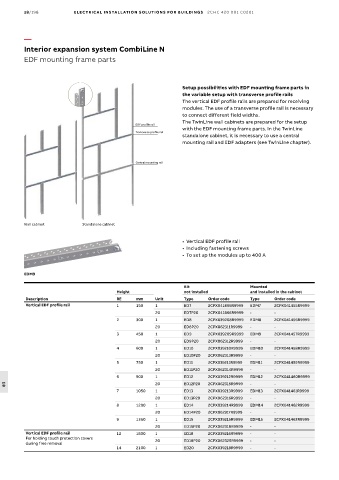

18/198 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
EDF mounting frame parts

Setup possibilities with EDF mounting frame parts in
the variable setup with transverse profile rails
The vertical EDF profile rails are prepared for receiving
modules. The use of a transverse profile rail is necessary
to connect different field widths.
The TwinLine wall cabinets are prepared for the setup
EDF profile rail
with the EDF mounting frame parts. In the TwinLine
Transverse profile rail
standalone cabinet, it is necessary to use a central
mounting rail and EDF adapters (see TwinLine chapter).

Central mounting rail

Wall cabinet Standalone cabinet

• Vertical EDF profile rail
• Including fastening screws
• To set up the modules up to 400 A

EDM9
Kit Mounted
Height not installed and installed in the cabinet
Description RE mm Unit Type Order code Type Order code
Vertical EDF profile rail 1 150 1 ED7 2CPX041865R9999 EDM7 2CPX041455R9999
20 ED7P20 2CPX041866R9999 - -
2 300 1 ED8 2CPX039208R9999 EDM8 2CPX041456R9999
20 ED8P20 2CPX062311R9999 - -
3 450 1 ED9 2CPX039209R9999 EDM9 2CPX041457R9999
20 ED9P20 2CPX062312R9999 - -
4 600 1 ED10 2CPX039210R9999 EDM10 2CPX041458R9999
20 ED10P20 2CPX062313R9999 - -
5 750 1 ED11 2CPX039211R9999 EDM11 2CPX041459R9999
20 ED11P20 2CPX062314R9999 - -
6 900 1 ED12 2CPX039212R9999 EDM12 2CPX041460R9999
20 ED12P20 2CPX062315R9999 - -
18
7 1050 1 ED13 2CPX039213R9999 EDM13 2CPX041461R9999
20 ED13P20 2CPX062316R9999 - -
8 1200 1 ED14 2CPX039214R9999 EDM14 2CPX041462R9999
20 ED14P20 2CPX062317R9999 - -
9 1350 1 ED15 2CPX039215R9999 EDM15 2CPX041463R9999
20 ED15P20 2CPX062318R9999 - -
Vertical EDF profile rail 12 1800 1 ED18 2CPX039216R9999 - -
For holding touch protection covers 20 ED18P20 2CPX062325R9999 - -
during free removal
14 2100 1 ED20 2CPX039218R9999 - -
