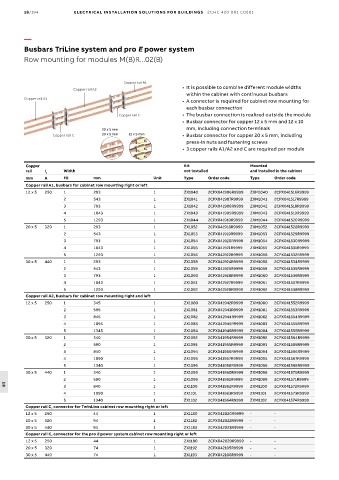

18/194 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busbars TriLine system and pro E power system
Row mounting for modules M(B)R...02(B)

Copper rail A1
• It is possible to combine different module widths
Copper rail A2
within the cabinet with continuous busbars
Copper rail A1
• A connector is required for cabinet row mounting for
each busbar connection
Copper rail C • The busbar connection is realized outside the module
• Busbar connector for copper 12 x 5 mm and 12 x 10
20 x 5 mm mm, including connection terminals
Copper rail C 30 x 5 mm 12 x 5 mm • Busbar connector for copper 20 x 5 mm, including
press-in nuts and fastening screws
• 3 copper rails A1/A2 and C are required per module

Copper Kit Mounted
rail I Width not installed and installed in the cabinet
n
mm A FB mm Unit Type Order code Type Order code
Copper rail A1, busbars for cabinet row mounting right or left
12 x 5 250 1 293 1 ZX1040 2CPX041906R9999 ZXM1040 2CPX041516R9999
2 543 1 ZX1041 2CPX041907R9999 ZXM1041 2CPX041517R9999
3 793 1 ZX1042 2CPX041908R9999 ZXM1042 2CPX041518R9999
4 1043 1 ZX1043 2CPX041909R9999 ZXM1043 2CPX041519R9999
5 1293 1 ZX1044 2CPX041910R9999 ZXM1044 2CPX041520R9999
20 x 5 320 1 293 1 ZX1052 2CPX041918R9999 ZXM1052 2CPX041528R9999
2 543 1 ZX1053 2CPX041919R9999 ZXM1053 2CPX041529R9999
3 793 1 ZX1054 2CPX041920R9999 ZXM1054 2CPX041530R9999
4 1043 1 ZX1055 2CPX041921R9999 ZXM1055 2CPX041531R9999
5 1293 1 ZX1056 2CPX041922R9999 ZXM1056 2CPX041532R9999
30 x 5 440 1 293 1 ZX1058 2CPX041924R9999 ZXM1058 2CPX041534R9999
2 543 1 ZX1059 2CPX041925R9999 ZXM1059 2CPX041535R9999
3 793 1 ZX1060 2CPX041926R9999 ZXM1060 2CPX041536R9999
4 1043 1 ZX1061 2CPX041927R9999 ZXM1061 2CPX041537R9999
5 1293 1 ZX1062 2CPX041928R9999 ZXM1062 2CPX041538R9999
Copper rail A2, busbars for cabinet row mounting right and left
12 x 5 250 1 345 1 ZX1080 2CPX041942R9999 ZXM1080 2CPX041552R9999
2 595 1 ZX1081 2CPX041943R9999 ZXM1081 2CPX041553R9999
3 845 1 ZX1082 2CPX041944R9999 ZXM1082 2CPX041554R9999
4 1095 1 ZX1083 2CPX041945R9999 ZXM1083 2CPX041555R9999
5 1345 1 ZX1084 2CPX041946R9999 ZXM1084 2CPX041556R9999
20 x 5 320 1 340 1 ZX1092 2CPX041954R9999 ZXM1092 2CPX041564R9999
2 590 1 ZX1093 2CPX041955R9999 ZXM1093 2CPX041565R9999
3 840 1 ZX1094 2CPX041956R9999 ZXM1094 2CPX041566R9999
4 1090 1 ZX1095 2CPX041957R9999 ZXM1095 2CPX041567R9999
5 1340 1 ZX1096 2CPX041958R9999 ZXM1096 2CPX041568R9999
30 x 5 440 1 340 1 ZX1098 2CPX041960R9999 ZXM1098 2CPX041570R9999
2 590 1 ZX1099 2CPX041961R9999 ZXM1099 2CPX041571R9999
3 840 1 ZX1100 2CPX041962R9999 ZXM1100 2CPX041572R9999
18
4 1090 1 ZX1101 2CPX041963R9999 ZXM1101 2CPX041573R9999
5 1340 1 ZX1102 2CPX041964R9999 ZXM1102 2CPX041574R9999
Copper rail C, connector for TwinLine cabinet row mounting right or left
12 x 5 250 44 1 ZX1180 2CPX042020R9999 - -
20 x 5 320 94 1 ZX1182 2CPX042022R9999 - -
30 x 5 440 94 1 ZX1183 2CPX042023R9999 - -
Copper rail C, connector for the pro E power system cabinet row mounting right or left
12 x 5 250 44 1 ZX1180 2CPX042020R9999 - -
20 x 5 320 74 1 ZX1192 2CPX042105R9999 - -
30 x 5 440 74 1 ZX1193 2CPX042106R9999 - -
