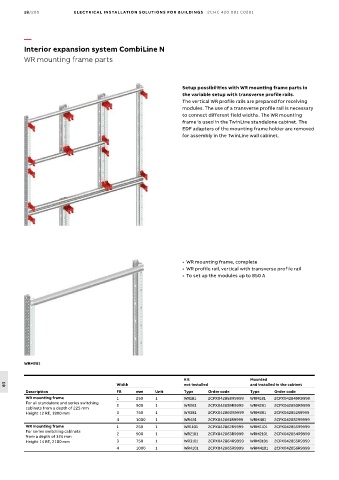

18/200 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system CombiLine N
WR mounting frame parts

Setup possibilities with WR mounting frame parts in
the variable setup with transverse profile rails.
The vertical WR profile rails are prepared for receiving
modules. The use of a transverse profile rail is necessary
to connect different field widths. The WR mounting
frame is used in the TwinLine standalone cabinet. The
EDF adapters of the mounting frame holder are removed
for assembly in the TwinLine wall cabinet.

• WR mounting frame, complete
• WR profile rail, vertical with transverse profile rail
• To set up the modules up to 850 A

WRM281

Kit Mounted
Width not installed and installed in the cabinet
18
Description FB mm Unit Type Order code Type Order code
WR mounting frame 1 250 1 WR181 2CPX042858R9999 WRM181 2CPX042849R9999
For all standalone and series switching 2 500 1 WR281 2CPX042859R9999 WRM281 2CPX042850R9999
cabinets from a depth of 225 mm
Height 12 RE, 1800 mm 3 750 1 WR381 2CPX042860R9999 WRM381 2CPX042851R9999
4 1000 1 WR481 2CPX042861R9999 WRM481 2CPX042852R9999
WR mounting frame 1 250 1 WR1101 2CPX042862R9999 WRM1101 2CPX042853R9999
For series switching cabinets 2 500 1 WR2101 2CPX042863R9999 WRM2101 2CPX042854R9999
from a depth of 325 mm
Height 14 RE, 2100 mm 3 750 1 WR3101 2CPX042864R9999 WRM3101 2CPX042855R9999
4 1000 1 WR4101 2CPX042865R9999 WRM4101 2CPX042856R9999
