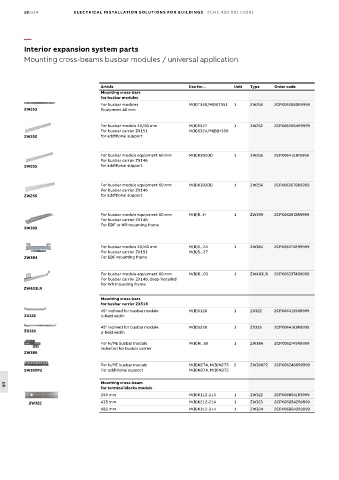

18/214 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system parts
Mounting cross-beams busbar modules / universal application

Article Use for... Unit Type Order code
Mounting cross-bars
for busbar modules
For busbar modules M(B)T350/M(B)T351 1 ZW253 2CPX062680R9999
ZW253 Equipment 40 mm

For busbar module 40/60 mm M(B)S327 1 ZW252 2CPX062664R9999
For busbar carrier ZX151 M(B)S324/M(B)H350
ZW252 for additional support

For busbar module equipment 60 mm M(B)R302(B) 1 ZW255 2CPX064151R9999
For busbar carrier ZX146
ZW255 for additional support

For busbar module equipment 60 mm M(B)R303(B) 1 ZW256 2CPX062678R9999
For busbar carrier ZX146
ZW256 for additional support

For busbar module equipment 60 mm M(B)R...H 1 ZW399 2CPX062972R9999
For busbar carrier ZX146
For EDF or WR mounting frame
ZW399

For busbar module 40/60 mm M(B)S...24 1 ZW384 2CPX062748R9999
For busbar carrier ZX151 M(B)S...27
ZW384 For EDF mounting frame

For busbar module equipment 60 mm M(B)R...03 1 ZW403LR 2CPX062974R9999
For busbar carrier ZX146, deep-installed
For WR mounting frame
ZW403LR
Mounting cross-bars
for busbar carrier ZX518
45° inclined for busbar module M(B)S128 1 ZX322 2CPX064159R9999
ZX322 1-field width
45° inclined for busbar module M(B)S228 1 ZX333 2CPX064163R9999
ZX333 2-field width

For N/PE busbar module M(B)N...69 1 ZW386 2CPX062749R9999
Indented for busbar carrier
ZW386

For N/PE busbar module M(B)N274, M(B)N275 2 ZW390P2 2CPX062486R9999
ZW390P2 For additional support M(B)N374, M(B)N375
Mounting cross-beam
for terminal blocks module
18
195 mm M(B)K112-114 1 ZW322 2CPX068541R9999
ZW322 435 mm M(B)K212-214 1 ZW323 2CPX068542R9999
685 mm M(B)K312-314 1 ZW324 2CPX068543R9999
