18/215

—

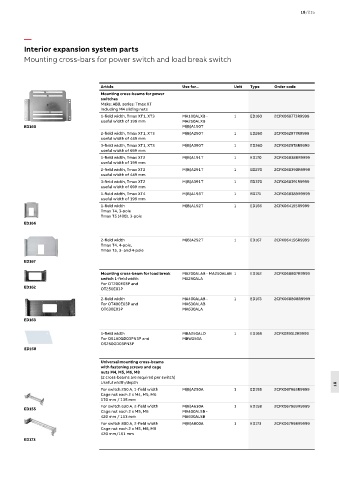

Interior expansion system parts
Mounting cross-bars for power switch and load break switch

Article Use for... Unit Type Order code
Mounting cross-beams for power
switches
Make: ABB, series: Tmax XT
Including M4 sliding nuts
1-field width, Tmax XT1, XT3 MA100ALXB - 1 ED160 2CPX068773R9999
useful width of 199 mm MA250ALXB
ED160 M(B)A190T
2-field width, Tmax XT1, XT3 M(B)A290T 1 ED260 2CPX062977R9999
useful width of 449 mm
3-field width, Tmax XT1, XT3 M(B)A390T 1 ED360 2CPX062978R9999
useful width of 699 mm

1-field width, Tmax XT2 M(B)A191T 1 ED170 2CPX068388R9999
useful width of 199 mm
2-field width, Tmax XT2 M(B)A291T 1 ED270 2CPX068390R9999
useful width of 449 mm
3-field width, Tmax XT2 M(B)A391T 1 ED370 2CPX068391R9999
useful width of 699 mm
1-field width, Tmax XT4 M(B)A193T 1 ED171 2CPX068389R9999
useful width of 199 mm
1-field width M(B)A192T 1 ED166 2CPX064155R9999
Tmax T4, 3-pole
Tmax T5 (400), 3-pole

ED166

2-field width M(B)A292T 1 ED167 2CPX064156R9999
Tmax T4, 4-pole,
Tmax T5, 3- and 4-pole

ED167
Mounting cross-beam for load break MA200ALAB - MA250ALAB 1 ED162 2CPX068807R9999
switch 1-field width MA250ALA
For OT200E03P and
ED162 OT250E03P
2-field width MA400ALAB - 1 ED163 2CPX068808R9999
For OT400E03P and MA630ALAB
OT630E03P MA630ALA

ED163
1-field width MBA250ALO 1 ED168 2CPX039312R9999
For OS160GD03PN3P and MBW250A
OS250GD03PN3P
ED168

Universal mounting cross-beams
with fastening screws and cage
nuts M4, M5, M6, M8
(2 cross-beams are required per switch)
Useful width/depth
18
For switch 250 A, 1-field width M(B)A250A 1 ED155 2CPX067963R9999
Cage nut each 2 x M4, M5, M6
170 mm / 135 mm
For switch 630 A, 2-field width M(B)A630A 1 ED158 2CPX067969R9999
ED155
Cage nut each 2 x M5, M6 MA400ALSB -
420 mm / 153 mm MA630ALSB
For switch 800 A, 2-field width M(B)A800A 1 ED173 2CPX067998R9999
Cage nut each 2 x M5, M6, M8
420 mm/161 mm
ED173
