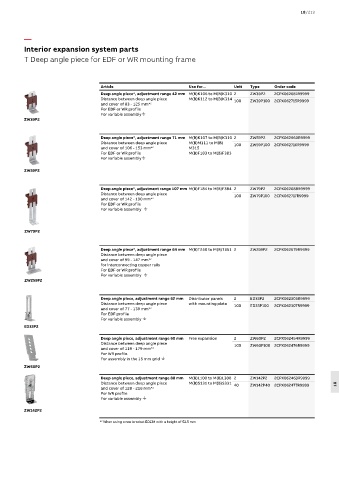

18/213

—
Interior expansion system parts
T Deep angle piece for EDF or WR mounting frame

Article Use for... Unit Type Order code
Deep angle piece*, adjustment range 42 mm M(B)K106 to M(B)K310 2 ZW39P2 2CPX062681R9999
Distance between deep angle piece M(B)K112 to M(B)K314 100 ZW39P100 2CPX062715R9999
and cover of 83 - 125 mm* 2
For EDF or WR profile
For variable assembly.
ZW39P2

Deep angle piece*, adjustment range 71 mm M(B)K107 to M(B)K310 2 ZW59P2 2CPX062660R9999
Distance between deep angle piece M(B)M111 to M(B) 100 ZW59P100 2CPX062716R9999
and cover of 106 - 153 mm* 2 M315
For EDF or WR profile M(B)F183 to M(B)F383
For variable assembly.

ZW59P2

Deep angle piece*, adjustment range 107 mm M(B)F184 to M(B)F384 2 ZW79P2 2CPX062688R9999
Distance between deep angle piece 100 ZW79P100 2CPX062717R9999
and cover of 142 - 190 mm* 2
For EDF or WR profile
For variable assembly .

ZW79P2

Deep angle piece*, adjustment range 64 mm M(B)T250 to M(B)T351 2 ZW259P2 2CPX062679R9999
Distance between deep angle piece
and cover of 99 - 147 mm* 2
for interconnecting copper rails
For EDF or WR profile
For variable assembly .
ZW259P2

Deep angle piece, adjustment range 62 mm Distributor panels 2 ED33P2 2CPX062305R9999
Distance between deep angle piece with mounting plate 100 ED33P100 2CPX062307R9999
and cover of 77 - 139 mm* 2
For EDF profile
For variable assembly .
ED33P2

Deep angle piece, adjustment range 60 mm Free expansion 2 ZW60P2 2CPX062454R9999
Distance between deep angle piece 100 ZW60P100 2CPX062476R9999
and cover of 119 - 179 mm* 2
For WR profile
For assembly in the 15 mm grid .
ZW60P2
Deep angle piece, adjustment range 88 mm M(B)L100 to M(B)L300 2 ZW142P2 2CPX062463R9999
Distance between deep angle piece M(B)S131 to M(B)S331 40 ZW142P40 2CPX062477R9999 18
and cover of 128 - 216 mm* 2
For WR profile
For variable assembly .
ZW142P2

* 2 When using cover bracket ED138 with a height of 52.5 mm
