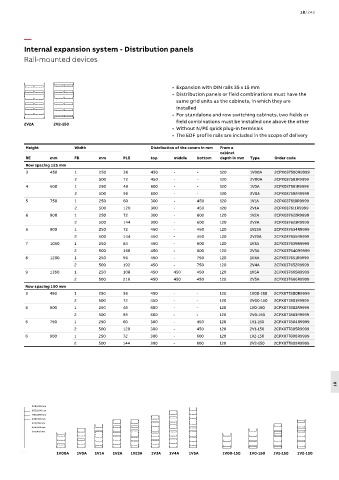

Internal expansion system - Distribution panels
Rail-mounted devices

• Expansion with DIN rails 35 x 15 mm
• Distribution panels or field combinations must have the
same grid units as the cabinets, in which they are
installed
• For standalone and row switching cabinets, two fields or
field combinations must be installed one above the other
2V2A 2V2-150
• Without N/PE quick plug-in terminals
• The EDF profile rails are included in the scope of delivery

Height Width Distribution of the covers in mm From a
cabinet
RE mm FB mm PLE top middle bottom depth in mm Type Order code
Row spacing 125 mm
3 450 1 250 36 450 - - 120 1V00A 2CPX037580R9999
2 500 72 450 - - 120 2V00A 2CPX037581R9999
4 600 1 250 48 600 - - 120 1V0A 2CPX037591R9999
2 500 96 600 - - 120 2V0A 2CPX037592R9999
5 750 1 250 60 300 - 450 120 1V1A 2CPX037610R9999
2 500 120 300 - 450 120 2V1A 2CPX037611R9999
6 900 1 250 72 300 - 600 120 1V2A 2CPX037622R9999
2 500 144 300 - 600 120 2V2A 2CPX037623R9999
6 900 1 250 72 450 - 450 120 1V23A 2CPX037634R9999
2 500 144 450 - 450 120 2V23A 2CPX037635R9999
7 1050 1 250 84 450 - 600 120 1V3A 2CPX037639R9999
2 500 168 450 - 600 120 2V3A 2CPX037640R9999
8 1200 1 250 96 450 - 750 120 1V4A 2CPX037651R9999
2 500 192 450 - 750 120 2V4A 2CPX037652R9999
9 1350 1 250 108 450 450 450 120 1V5A 2CPX037665R9999
2 500 216 450 450 450 120 2V5A 2CPX037666R9999
Row spacing 150 mm
3 450 1 250 36 450 - - 120 1V00-150 2CPX077800R9999
2 500 72 450 - - 120 2V00-150 2CPX077801R9999
4 600 1 250 48 600 - - 120 1V0-150 2CPX077802R9999
2 500 96 600 - - 120 2V0-150 2CPX077803R9999
5 750 1 250 60 300 - 450 120 1V1-150 2CPX077804R9999
2 500 120 300 - 450 120 2V1-150 2CPX077805R9999
6 900 1 250 72 300 - 600 120 1V2-150 2CPX077808R9999
2 500 144 300 - 600 120 2V2-150 2CPX077809R9999

18

9 RE/1350 mm
8 RE/1200 mm
7 RE/1050 mm
6 RE/900 mm
5 RE/750 mm
4 RE/600 mm
3 RE/450 mm

1V00A 1V0A 1V1A 1V2A 1V23A 1V3A 1V4A 1V5A 1V00-150 1V0-150 1V1-150 1V2-150
