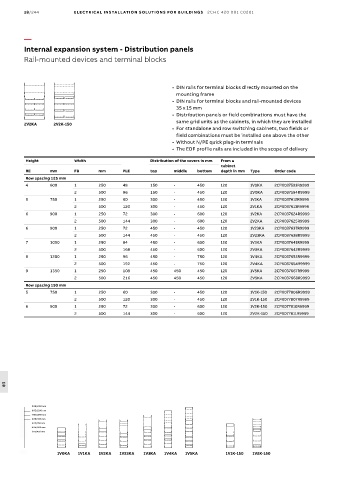

18/244 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Internal expansion system - Distribution panels
Rail-mounted devices and terminal blocks

• DIN rails for terminal blocks directly mounted on the
mounting frame
• DIN rails for terminal blocks and rail-mounted devices
35 x 15 mm
• Distribution panels or field combinations must have the
same grid units as the cabinets, in which they are installed
2V2KA 2V2K-150
• For standalone and row switching cabinets, two fields or
field combinations must be installed one above the other
• Without N/PE quick plug-in terminals
• The EDF profile rails are included in the scope of delivery

Height Width Distribution of the covers in mm From a
cabinet
RE mm FB mm PLE top middle bottom depth in mm Type Order code
Row spacing 125 mm
4 600 1 250 48 150 - 450 120 1V0KA 2CPX037593R9999
2 500 96 150 - 450 120 2V0KA 2CPX037594R9999
5 750 1 250 60 300 - 450 120 1V1KA 2CPX037612R9999
2 500 120 300 - 450 120 2V1KA 2CPX037613R9999
6 900 1 250 72 300 - 600 120 1V2KA 2CPX037624R9999
2 500 144 300 - 600 120 2V2KA 2CPX037625R9999
6 900 1 250 72 450 - 450 120 1V23KA 2CPX037637R9999
2 500 144 450 - 450 120 2V23KA 2CPX037638R9999
7 1050 1 250 84 450 - 600 120 1V3KA 2CPX037641R9999
2 500 168 450 - 600 120 2V3KA 2CPX037642R9999
8 1200 1 250 96 450 - 750 120 1V4KA 2CPX037653R9999
2 500 192 450 - 750 120 2V4KA 2CPX037654R9999
9 1350 1 250 108 450 450 450 120 1V5KA 2CPX037667R9999
2 500 216 450 450 450 120 2V5KA 2CPX037668R9999
Row spacing 150 mm
5 750 1 250 60 300 - 450 120 1V1K-150 2CPX077806R9999
2 500 120 300 - 450 120 2V1K-150 2CPX077807R9999
6 900 1 250 72 300 - 600 120 1V2K-150 2CPX077810R9999
2 500 144 300 - 600 120 2V2K-150 2CPX077811R9999

18

9 RE/1350 mm
8 RE/1200 mm
7 RE/1050 mm
6 RE/900 mm
5 RE/750 mm
4 RE/600 mm
3 RE/450 mm

1V0KA 1V1KA 1V2KA 1V23KA 1V3KA 1V4KA 1V5KA 1V1K-150 1V2K-150
