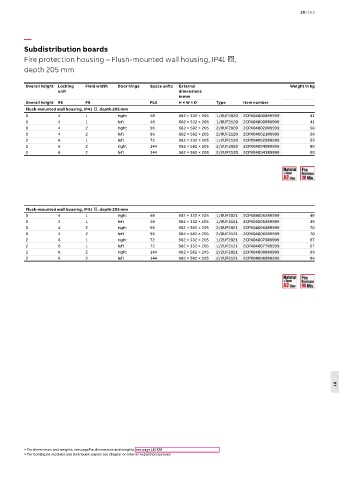

Subdistribution boards
Fire protection housing – Flush-mounted wall housing, IP41 ,,
depth 205 mm
Overall height Locking Field width Door hinge Space units External Weight in kg
unit dimensions
in mm
Overall height RE FB PLE H × W × D Type Item number
Flush-mounted wall housing, IP41 ,, depth 205 mm
0 4 1 right 48 682 × 332 × 205 1/0UF2020 2CPX040008R9999 41
0 4 1 left 48 682 × 332 × 205 1/0UF2120 2CPX040009R9999 41
0 4 2 right 96 682 × 582 × 205 2/0UF2020 2CPX040020R9999 58
0 4 2 left 96 682 × 582 × 205 2/0UF2120 2CPX040021R9999 58
2 6 1 left 72 982 × 332 × 205 1/2UF2120 2CPX040029R9999 55
2 6 2 right 144 982 × 582 × 205 2/2UF2020 2CPX040040R9999 80
2 6 2 left 144 982 × 582 × 205 2/2UF2120 2CPX040041R9999 80
Flush-mounted wall housing, IP41 ,, depth 205 mm
0 4 1 right 48 682 × 332 × 205 1/0UF2021 2CPX040052R9999 49
0 4 1 left 48 682 × 332 × 205 1/0UF2121 2CPX040053R9999 49
0 4 2 right 96 682 × 582 × 205 2/0UF2021 2CPX040064R9999 70
0 4 2 left 96 682 × 582 × 205 2/0UF2121 2CPX040065R9999 70
2 6 1 right 72 982 × 332 × 205 1/2UF2021 2CPX040076R9999 67
2 6 1 left 72 982 × 332 × 205 1/2UF2121 2CPX040077R9999 67
2 6 2 right 144 982 × 582 × 205 2/2UF2021 2CPX040088R9999 99
2 6 2 left 144 982 × 582 × 205 2/2UF2121 2CPX040089R9999 99
18
> For dimensions and weights, see pageFor dimensions and weights, see page 18/338
> For CombiLine modules and distributor panels see chapter on interior expansion systems
