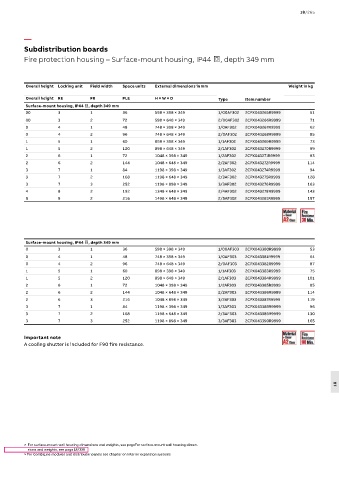

18/265

—
Subdistribution boards
Fire protection housing – Surface-mount housing, IP44 ,, depth 349 mm

Overall height Locking unit Field width Space units External dimensions in mm Weight in kg

Overall height RE FB PLE H × W × D Type Item number
Surface-mount housing, IP44 ,, depth 349 mm
00 3 1 36 598 × 398 × 349 1/00AF302 2CPX043265R9999 51
00 3 2 72 598 × 648 × 349 2/00AF302 2CPX043266R9999 71
0 4 1 48 748 × 398 × 349 1/0AF302 2CPX043267R9999 62
0 4 2 96 748 × 648 × 349 2/0AF302 2CPX043268R9999 85
1 5 1 60 898 × 398 × 349 1/1AF302 2CPX043269R9999 73
1 5 2 120 898 × 648 × 349 2/1AF302 2CPX043270R9999 99
2 6 1 72 1048 × 398 × 349 1/2AF302 2CPX043271R9999 83
2 6 2 144 1048 × 648 × 349 2/2AF302 2CPX043272R9999 114
3 7 1 84 1198 × 398 × 349 1/3AF302 2CPX043274R9999 94
3 7 2 168 1198 × 648 × 349 2/3AF302 2CPX043275R9999 128
3 7 3 252 1198 × 898 × 349 3/3AF302 2CPX043276R9999 163
4 8 2 192 1348 × 648 × 349 2/4AF302 2CPX043278R9999 143
5 9 2 216 1498 × 648 × 349 2/5AF302 2CPX043281R9999 157

Surface-mount housing, IP44 ,, depth 349 mm
0 3 1 36 598 × 398 × 349 1/00AF303 2CPX043380R9999 53
0 4 1 48 748 × 398 × 349 1/0AF303 2CPX043381R9999 64
0 4 2 96 748 × 648 × 349 2/0AF303 2CPX043382R9999 87
1 5 1 60 898 × 398 × 349 1/1AF303 2CPX043383R9999 75
1 5 2 120 898 × 648 × 349 2/1AF303 2CPX043384R9999 101
2 6 1 72 1048 × 398 × 349 1/2AF303 2CPX043385R9999 85
2 6 2 144 1048 × 648 × 349 2/2AF303 2CPX043386R9999 114
2 6 3 216 1048 × 898 × 349 3/2AF303 2CPX043387R9999 119
3 7 1 84 1198 × 398 × 349 1/3AF303 2CPX043388R9999 96
3 7 2 168 1198 × 648 × 349 2/3AF303 2CPX043389R9999 130
3 7 3 252 1198 × 898 × 349 3/3AF303 2CPX043390R9999 165

Important note
A cooling shutter is included for F90 fire resistance.

18

> For surface-mount wall housing dimensions and weights, see pageFor surface-mount wall housing dimen-
sions and weights, see page 18/338
> For CombiLine modules and distributor panels see chapter on interior expansion systems
