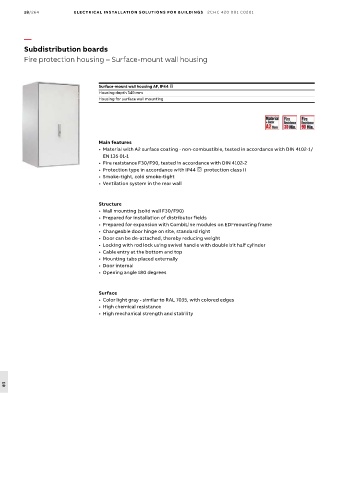

18/264 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Fire protection housing – Surface-mount wall housing

Surface-mount wall housing AF, IP44 ,
Housing depth 349 mm
Housing for surface wall mounting

Main features
• Material with A2 surface coating - non-combustible, tested in accordance with DIN 4102-1/
EN 135 01-1
• Fire resistance F30/F90, tested in accordance with DIN 4102-2
• Protection type in accordance with IP44 , protection class II
• Smoke-tight, cold smoke-tight
• Ventilation system in the rear wall

Structure
• Wall mounting (solid wall F30/F90)
• Prepared for installation of distributor fields
• Prepared for expansion with CombiLine modules on EDFmounting frame
• Changeable door hinge on site, standard right
• Door can be de-attached, thereby reducing weight
• Locking with rod lock using swivel handle with double bit half cylinder
• Cable entry at the bottom and top
• Mounting tabs placed externally
• Door internal
• Opening angle 180 degrees

Surface
• Color light gray - similar to RAL 7035, with colored edges
• High chemical resistance
• High mechanical strength and stability
