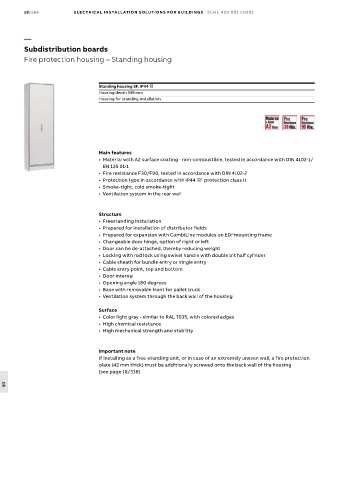

18/266 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Fire protection housing – Standing housing

Standing housing SF, IP44 ,
Housing depth 349 mm
Housing for standing installation

Main features
• Material with A2 surface coating - non-combustible, tested in accordance with DIN 4102-1/
EN 135 01-1
• Fire resistance F30/F90, tested in accordance with DIN 4102-2
• Protection type in accordance with IP44 , protection class II
• Smoke-tight, cold smoke-tight
• Ventilation system in the rear wall

Structure
• Freestanding installation
• Prepared for installation of distributor fields
• Prepared for expansion with CombiLine modules on EDFmounting frame
• Changeable door hinge, option of right or left
• Door can be de-attached, thereby reducing weight
• Locking with rod lock using swivel handle with double bit half cylinder
• Cable sheath for bundle entry or single entry
• Cable entry point, top and bottom
• Door internal
• Opening angle 180 degrees
• Base with removable front for pallet truck
• Ventilation system through the back wall of the housing

Surface
• Color light gray - similar to RAL 7035, with colored edges
• High chemical resistance
• High mechanical strength and stability

Important note
If installing as a free-standing unit, or in case of an extremely uneven wall, a fire protection
plate (42 mm thick) must be additionally screwed onto the back wall of the housing
(see page 18/338)
