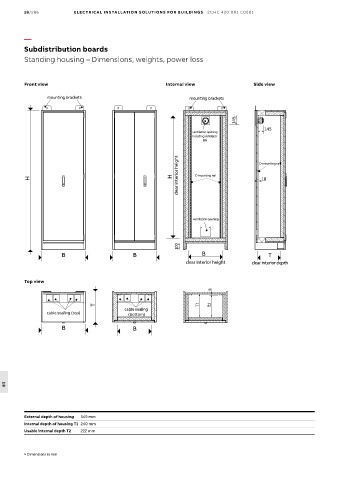

18/286 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Subdistribution boards
Standing housing – Dimensions, weights, power loss
Front view Internal view Side view
mounting brackets mounting brackets
145
145
ventilation opening
including ventilator
RM
clear interior height C-mounting rail C-mounting rail
H H 18
ventilation opening
100
B B B T
clear interior height clear interior depth
Top view
18
T T1 T2
cable sealing
cable sealing (top) (bottom)
B B
18
External depth of housing 349 mm
Internal depth of housing T1 240 mm
Usable internal depth T2 222 mm
> Dimensions in mm
