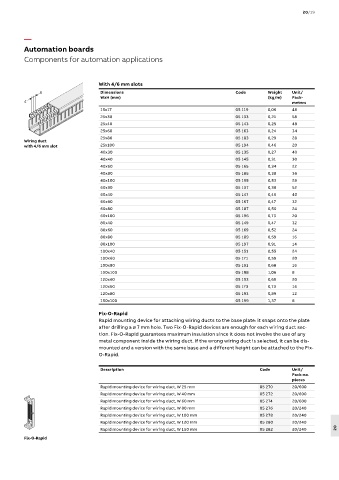

20/19

—
Automation boards
Components for automation applications

With 4/6 mm slots
Dimensions Code Weight Unit/
WxH (mm) (kg/m) Pack-
meters
15x17 05 119 0,06 46
25x30 05 133 0,21 58
25x40 05 143 0,25 48
25x60 05 163 0,24 34
25x80 05 183 0,29 28
Wiring duct
with 4/6 mm slot 25x100 05 194 0,46 20
40x30 05 135 0,27 40
40x40 05 145 0,31 30
40x60 05 165 0,34 22
40x80 05 185 0,38 36
40x100 05 195 0,53 28
60x30 05 137 0,38 52
60x40 05 147 0,46 40
60x60 05 167 0,47 32
60x80 05 187 0,50 24
60x100 05 196 0,73 20
80x40 05 149 0,47 32
80x60 05 169 0,52 24
80x80 05 189 0,59 16
80x100 05 197 0,91 14
100x40 05 151 0,55 24
100x60 05 171 0,59 20
100x80 05 191 0,68 16
100x100 05 198 1,06 8
120x40 05 153 0,65 20
120x60 05 173 0,73 14
120x80 05 193 0,89 12
150x100 05 199 1,37 8

Fix-O-Rapid
Rapid mounting device for attaching wiring ducts to the base plate: it snaps onto the plate
after drilling a ø 7 mm hole. Two Fix-O-Rapid devices are enough for each wiring duct sec-
tion. Fix-O-Rapid guarantees maximum insulation since it does not involve the use of any
metal component inside the wiring duct. If the wrong wiring duct is selected, it can be dis-
mounted and a version with the same base and a different height can be attached to the Fix-
O-Rapid.

Description Code Unit/
Pack-no.
pieces
Rapid mounting device for wiring duct, W 25 mm 05 270 20/600
Rapid mounting device for wiring duct, W 40 mm 05 272 20/600
Rapid mounting device for wiring duct, W 60 mm 05 274 20/600
Rapid mounting device for wiring duct, W 80 mm 05 276 20/240
Rapid mounting device for wiring duct, W 100 mm 05 278 20/240
Rapid mounting device for wiring duct, W 120 mm 05 280 20/240
Rapid mounting device for wiring duct, W 150 mm 05 282 20/240 20
Fix-O-Rapid
