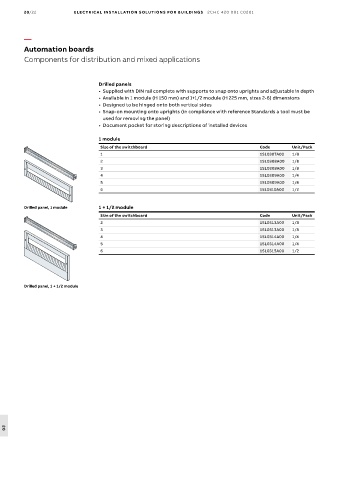

20/22 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Automation boards
Components for distribution and mixed applications

Drilled panels
• Supplied with DIN rail complete with supports to snap onto uprights and adjustable in depth
• Available in 1 module (H 150 mm) and 1+1/2 module (H 225 mm, sizes 2-6) dimensions
• Designed to be hinged onto both vertical sides
• Snap-on mounting onto uprights (in compliance with reference Standards a tool must be
used for removing the panel)
• Document pocket for storing descriptions of installed devices

1 module
Size of the switchboard Code Unit/Pack
1 1SL0307A00 1/8
2 1SL0308A00 1/8
3 1SL0308A00 1/8
4 1SL0309A00 1/4
5 1SL0309A00 1/4
6 1SL0310A00 1/2

Drilled panel, 1 module 1 + 1/2 module
Size of the switchboard Code Unit/Pack
2 1SL0313A00 1/8
3 1SL0313A00 1/8
4 1SL0314A00 1/4
5 1SL0314A00 1/4
6 1SL0315A00 1/2

Drilled panel, 1 + 1/2 module

20
