20/21

—

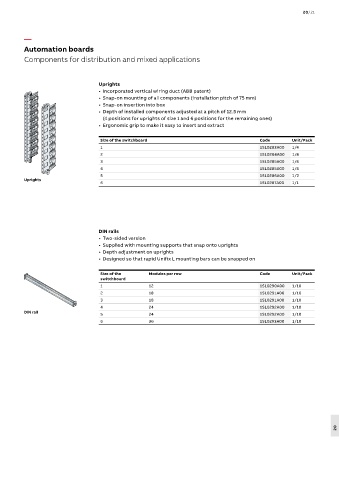

Automation boards
Components for distribution and mixed applications

Uprights
• Incorporated vertical wiring duct (ABB patent)
• Snap-on mounting of all components (installation pitch of 75 mm)
• Snap-on insertion into box
• Depth of installed components adjusted at a pitch of 12.5 mm
(4 positions for uprights of size 1 and 6 positions for the remaining ones)
• Ergonomic grip to make it easy to insert and extract

Size of the switchboard Code Unit/Pack
1 1SL0283A00 1/4
2 1SL0284A00 1/4
3 1SL0285A00 1/4
4 1SL0285A00 1/4
5 1SL0286A00 1/2
Uprights
6 1SL0287A00 1/1

DIN rails
• Two-sided version
• Supplied with mounting supports that snap onto uprights
• Depth adjustment on uprights
• Designed so that rapid Unifix L mounting bars can be snapped on

Size of the Modules per row Code Unit/Pack
switchboard
1 12 1SL0290A00 1/10
2 18 1SL0291A00 1/10
3 18 1SL0291A00 1/10
4 24 1SL0292A00 1/10
DIN rail 5 24 1SL0292A00 1/10
6 36 1SL0293A00 1/10

20
