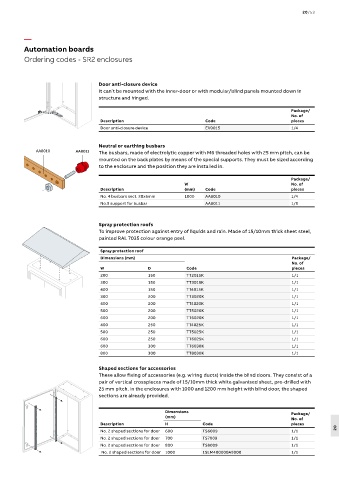

20/53

—
Automation boards
Ordering codes - SR2 enclosures

Door anti-closure device
It can’t be mounted with the inner-door or with modular/blind panels mounted down in
structure and hinged.

Package/
No. of
Description Code pieces
Door anti-closure device EV0015 1/4

Neutral or earthing busbars
AA8010 AA8011 The busbars, made of electrolytic copper with M6 threaded holes with 25 mm pitch, can be
mounted on the back plates by means of the special supports. They must be sized according
to the enclosure and the position they are installed in.

Package/
W No. of
Description (mm) Code pieces
No. 4 busbars sect. 20x5mm 1000 AA8010 1/4
No.5 support for busbar AA8011 1/5

Spray protection roofs
To improve protection against entry of liquids and rain. Made of 15/10mm thick sheet steel,
painted RAL 7035 colour orange peel.
Spray protection roof
Dimensions (mm) Package/
No. of
W D Code pieces
200 150 TT2015K 1/1
300 150 TT3015K 1/1
400 150 TT4015K 1/1
300 200 TT3020K 1/1
400 200 TT4020K 1/1
500 200 TT5020K 1/1
600 200 TT6020K 1/1
400 250 TT4025K 1/1
500 250 TT5025K 1/1
600 250 TT6025K 1/1
600 300 TT6030K 1/1
800 300 TT8030K 1/1

Shaped sections for accessories
These allow fixing of accessories (e.g. wiring ducts) inside the blind doors. They consist of a
pair of vertical crosspieces made of 15/10mm thick white galvanised sheet, pre-drilled with
25 mm pitch. In the enclosures with 1000 and 1200 mm height with blind door, the shaped
sections are already provided.

Dimensions Package/
(mm)
No. of
Description H Code pieces
20
No. 2 shaped sections for door 600 TS6009 1/1
No. 2 shaped sections for door 700 TS7009 1/1
No. 2 shaped sections for door 800 TS8009 1/1
No. 2 shaped sections for door 1000 1SLM400000A9000 1/1
