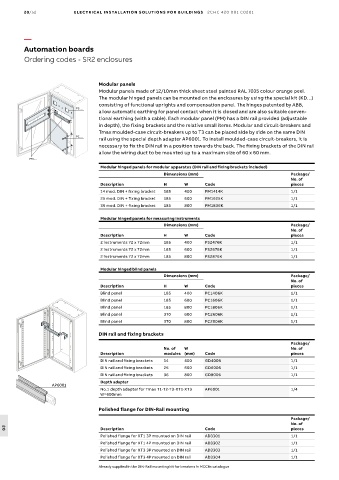

20/52 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Automation boards
Ordering codes - SR2 enclosures

Modular panels
Modular panels made of 12/10mm thick sheet steel painted RAL 7035 colour orange peel.
The modular hinged panels can be mounted on the enclosures by using the special kit (KD…)
consisting of functional uprights and compensation panel. The hinges patented by ABB,
PS….
allow automatic earthing for panel contact when it is closed and are also suitable conven-
tional earthing (with a cable). Each modular panel (PM) has a DIN rail provided (adjustable
in depth), the fixing brackets and the relative small items. Modular and circuit-breakers and
Tmax moulded-case circuit-breakers up to T3 can be placed side by side on the same DIN
PC….
rail using the special depth adapter AP6001. To install moulded-case circuit-breakers, it is
necessary to fix the DIN rail in a position towards the back. The fixing brackets of the DIN rail
allow the wiring duct to be mounted up to a maximum size of 60 x 60 mm.
PM….
Modular hinged panels for modular apparatus (DIN rail and fixing brackets included)
Dimensions (mm) Package/
No. of
Description H W Code pieces
14 mod. DIN + fixing bracket 185 400 PM1414K 1/1
25 mod. DIN + fixing bracket 185 600 PM1625K 1/1
36 mod. DIN + fixing bracket 185 800 PM1836K 1/1

Modular hinged panels for measuring instruments
Dimensions (mm) Package/
No. of
Description H W Code pieces
2 instruments 72 x 72mm 185 400 PS2476K 1/1
2 instruments 72 x 72mm 185 600 PS2676K 1/1
2 instruments 72 x 72mm 185 800 PS2876K 1/1
Modular hinged blind panels
Dimensions (mm) Package/
No. of
Description H W Code pieces
Blind panel 185 400 PC1406K 1/1
Blind panel 185 600 PC1606K 1/1
Blind panel 185 800 PC1806K 1/1
Blind panel 370 600 PC2606K 1/1
Blind panel 370 800 PC2806K 1/1
DIN rail and fixing brackets

Package/
No. of W No. of
Description modules (mm) Code pieces
DIN rail and fixing brackets 14 400 GD4006 1/1
DIN rail and fixing brackets 25 600 GD6006 1/1
DIN rail and fixing brackets 36 800 GD8006 1/1
Depth adapter
AP6001
No.1 depth adapter for Tmax T1-T2-T3-XT1-XT3 AP6001 1/4
W=600mm

Polished flange for DIN-Rail mounting
Package/
No. of
Description Code pieces
20
Polished flange for XT1 3P mounted on DIN rail AD3301 1/1
Polished flange for XT1 4P mounted on DIN rail AD3302 1/1
Polished flange for XT3 3P mounted on DIN rail AD3303 1/1
Polished flange for XT3 4P mounted on DIN rail AD3304 1/1
Already supplied in the DIN-Rail mounting kit for breakers in MCCBs catalogue
