20/55

—

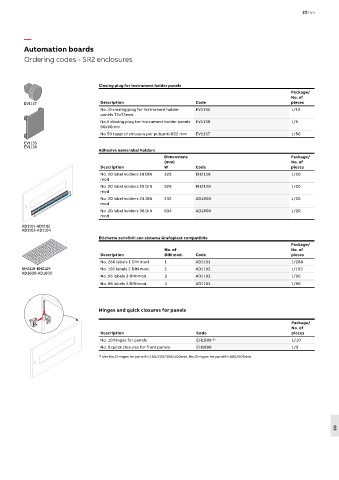

Automation boards
Ordering codes - SR2 enclosures

Closing plug for instrument holder panels
Package/
No. of
EV1137 Description Code pieces
No.10 closing plug for instrument holder EV1135 1/10
panels 72x72mm
No.5 closing plug for instrument holder panels EV1136 1/5
96x96mm
No.50 tappi di chiusura per pulsanti Ø22 mm EV1137 1/50
EV1135
EV1136
Adhesive name label holders
Dimensions Package/
(mm) No. of
Description W Code pieces
No. 20 label holders 18 DIN 325 EH2118 1/20
mod
No. 20 label holders 29 DIN 525 EH2129 1/20
mod
No. 20 label holders 24 DIN 432 AD1600 1/20
mod
No. 20 label holders 36 DIN 634 AD1800 1/20
mod
AD1101-AD1102
AD1103-AD1104
Etichette scrivibili con sistema Grafoplast compatibile
Package/
No. of No. of
Description DIN mod. Code pieces
No. 288 labels 1 DIN mod. 1 AD1101 1/288
EH2118-EH2129 No. 192 labels 2 DIN mod. 2 AD1102 1/192
AD1600-AD1800
No. 96 labels 3 DIN mod. 3 AD1103 1/96
No. 96 labels 4 DIN mod. 4 AD1104 1/96

Hinges and quick closures for panels

Package/
No. of
Description Code pieces
No. 10 hinges for panels EH1889 (1) 1/10
No. 5 quick closures for front panels EH1890 1/5
(1) Use No.2 hinges for panel H=150/200/300/400mm, No.3 hinges for panel H=500/600mm.
