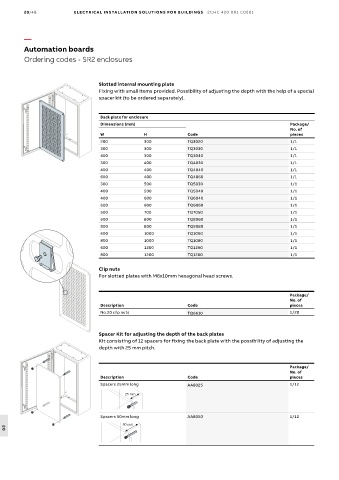

20/48 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Automation boards
Ordering codes - SR2 enclosures

Slotted internal mounting plate
Fixing with small items provided. Possibility of adjusting the depth with the help of a special
spacer kit (to be ordered separately).

Back plate for enclosure
Dimensions (mm) Package/
No. of
W H Code pieces
200 300 TQ3020 1/1
300 300 TQ3030 1/1
400 300 TQ3040 1/1
300 400 TQ4030 1/1
400 400 TQ4040 1/1
600 400 TQ4060 1/1
300 500 TQ5030 1/1
400 500 TQ5040 1/1
400 600 TQ6040 1/1
600 600 TQ6060 1/1
500 700 TQ7050 1/1
600 800 TQ8060 1/1
800 800 TQ8080 1/1
600 1000 TQ1060 1/1
800 1000 TQ1080 1/1
600 1200 TQ1260 1/1
800 1200 TQ1280 1/1

Clip nuts
For slotted plates with M6x10mm hexagonal head screws.

Package/
No. of
Description Code pieces
No.20 clip nuts TQ6610 1/20

Spacer Kit for adjusting the depth of the back plates
Kit consisting of 12 spacers for fixing the back plate with the possibility of adjusting the
depth with 25 mm pitch.

Package/
No. of
Description Code pieces
Spacers 25mm long AA8025 1/12
25 mm

Spacers 50mm long AA8050 1/12
50 mm
20
