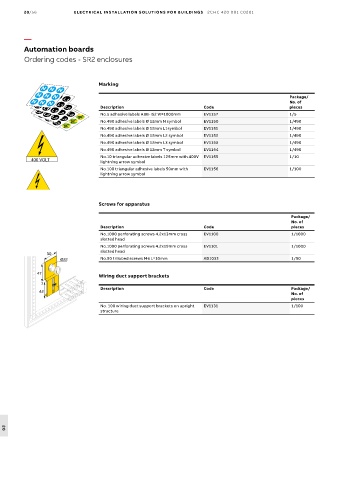

20/56 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Automation boards
Ordering codes - SR2 enclosures

Marking
N N N
Package/
N N N
No. of
L1 L1 L1
N N N
L1 L1 L1
Description Code pieces
L1
L1 L1 L2
L1
L1 L1 L1
L1
No.5 adhesive labels ABB-IS2 W=1000mm EV1157 1/5
L1 L1 L2
L1
L1 L3
L2
L2 L2 L2
No.490 adhesive labels Ø 12mm N symbol EV1150 1/490
L1 L3
L2
T L3
No.490 adhesive labels Ø 12mm L1symbol EV1151 1/490
No.490 adhesive labels Ø 12mm L2 symbol EV1152 1/490
No.490 adhesive labels Ø 12mm L3 symbol EV1153 1/490
No.490 adhesive labels Ø 12mm T symbol EV1154 1/490
No.10 triangular adhesive labels 125mm with 400V EV1155 1/10
400 VOLT lightning arrow symbol
No.100 triangular adhesive labels 50mm with EV1156 1/100
lightning arrow symbol
Screws for apparatus
Package/
No. of
Description Code pieces
No.1000 perforating screws 4.2x13mm cross EV1100 1/1000
slotted head
No.1000 perforating screws 4.2x19mm cross EV1101 1/1000
slotted head
30
Ø22 No.50 trilobed screws M6 L=10mm AD1033 1/50
47
Wiring duct support brackets
7
Description Code Package/
42
No. of
pieces
No. 100 wiring duct support brackets on upright EV1131 1/100
structure

20
