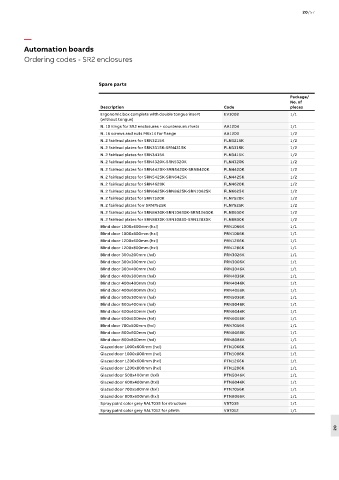

Automation boards
Ordering codes - SR2 enclosures

Spare parts

Package/
No. of
Description Code pieces
Ergonomic box complete with double tongue insert EV1008 1/1
(without tongue)
N. 10 hings for SR2 enclosures + countersunk rivets AA1204 1/1
N. 16 screws and nuts M6x14 for flange AA1203 1/2
N. 2 fairlead plates for SRN3215K FLN3215K 1/2
N. 2 fairlead plates for SRN3315K-SRN4315K FLN3315K 1/2
N. 2 fairlead plates for SRN3415K FLN3415K 1/2
N. 2 fairlead plates for SRN4320K-SRN5320K FLN4320K 1/2
N. 2 fairlead plates for SRN4420K-SRN5420K-SRN6420K FLN4420K 1/2
N. 2 fairlead plates for SRN5425K-SRN6425K FLN4425K 1/2
N. 2 fairlead plates for SRN4620K FLN4620K 1/2
N. 2 fairlead plates for SRN6625K-SRN8625K-SRN10625K FLN6625K 1/2
N. 2 fairlead plates for SRN7520K FLN7520K 1/2
N. 2 fairlead plates forr SRN7525K FLN7525K 1/2
N. 2 fairlead plates for SRN8630K-SRN10630K-SRN12630K FLN8630K 1/2
N. 2 fairlead plates for SRN8830K-SRN10830-SRN12830K FLN8830K 1/2
Blind door 1000x600mm (hxl) PRN1066K 1/1
Blind door 1000x800mm (hxl) PRN1086K 1/1
Blind door 1200x600mm (hxl) PRN1266K 1/1
Blind door 1200x800mm (hxl) PRN1286K 1/1
Blind door 300x200mm (hxl) PRN3026K 1/1
Blind door 300x300mm (hxl) PRN3006K 1/1
Blind door 300x400mm (hxl) PRN3046K 1/1
Blind door 400x300mm (hxl) PRN4036K 1/1
Blind door 400x400mm (hxl) PRN4046K 1/1
Blind door 400x600mm (hxl) PRN4066K 1/1
Blind door 500x300mm (hxl) PRN5036K 1/1
Blind door 500x400mm (hxl) PRN5046K 1/1
Blind door 600x400mm (hxl) PRN6046K 1/1
Blind door 600x600mm (hxl) PRN6066K 1/1
Blind door 700x500mm (hxl) PRN7056K 1/1
Blind door 800x600mm (hxl) PRN8066K 1/1
Blind door 800x800mm (hxl) PRN8086K 1/1
Glazed door 1000x600mm (hxl) PTN1066K 1/1
Glazed door 1000x800mm (hxl) PTN1086K 1/1
Glazed door 1200x600mm (hxl) PTN1266K 1/1
Glazed door 1200x800mm (hxl) PTN1286K 1/1
Glazed door 500x400mm (hxl) PTN5046K 1/1
Glazed door 600x400mm (hxl) PTN6046K 1/1
Glazed door 700x500mm (hxl) PTN7056K 1/1
Glazed door 800x600mm (hxl) PTN8066K 1/1
Spray paint color grey RAL7035 for structure VB7035 1/1
Spray paint color grey RAL7012 for plinth VB7012 1/1
