20/49

—

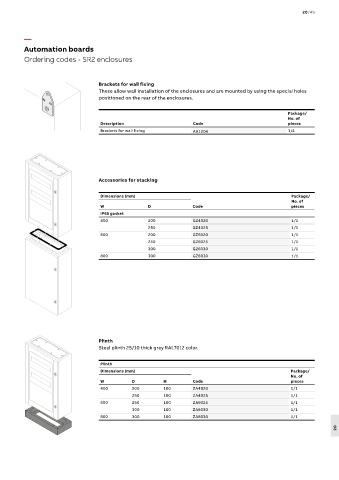

Automation boards
Ordering codes - SR2 enclosures

Brackets for wall fixing
These allow wall installation of the enclosures and are mounted by using the special holes
positioned on the rear of the enclosures.

Package/
No. of
Description Code pieces
Brackets for wall fixing AA1206 1/4

Accessories for stacking

Dimensions (mm) Package/
No. of
W D Code pieces
IP65 gasket
400 200 GZ4020 1/1
250 GZ4025 1/1
600 200 GZ6020 1/1
250 GZ6025 1/1
300 GZ6030 1/1
800 300 GZ8030 1/1

Plinth
Steel plinth 25/10 thick grey RAL7012 color.

Plinth
Dimensions (mm) Package/
No. of
W D H Code pieces
400 200 100 ZA4020 1/1
250 100 ZA4025 1/1
600 250 100 ZA6025 1/1
300 100 ZA6030 1/1
800 300 100 ZA8030 1/1
20
