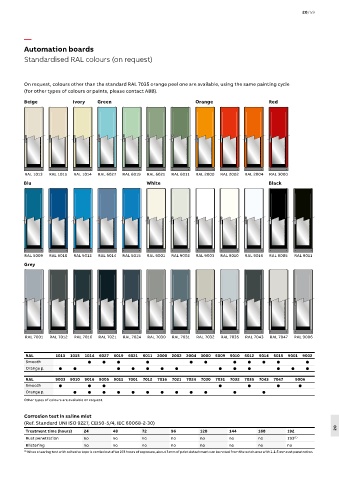

Page 2857 - Din prodcuts 2020

20/59

—
Automation boards
Standardised RAL colours (on request)

On request, colours other than the standard RAL 7035 orange peel one are available, using the same painting cycle
(for other types of colours or paints, please contact ABB).

Beige Ivory Green Orange Red

RAL 1013 RAL 1015 RAL 1014 RAL 6027 RAL 6019 RAL 6021 RAL 6011 RAL 2000 RAL 2002 RAL 2004 RAL 3000
Blu White Black

RAL 5009 RAL 5010 RAL 5012 RAL 5014 RAL 5015 RAL 9001 RAL 9002 RAL 9003 RAL 9010 RAL 9016 RAL 9005 RAL 9011
Grey

RAL 7001 RAL 7012 RAL 7016 RAL 7021 RAL 7024 RAL 7030 RAL 7031 RAL 7032 RAL 7035 RAL 7043 RAL 7047 RAL 9006

RAL 1013 1015 1014 6027 6019 6021 6011 2000 2002 2004 3000 5009 5010 5012 5014 5015 9001 9002
Smooth ● ● ● ● ● ● ● ● ● ● ●
Orange p. ● ● ● ● ● ● ● ● ● ● ● ● ●

RAL 9003 9010 9016 9005 9011 7001 7012 7016 7021 7024 7030 7031 7032 7035 7043 7047 9006
Smooth ● ● ● ● ● ● ●
Orange p. ● ● ● ● ● ● ● ● ● ● ● ●
Other types of colours are available on request.

Corrosion test in saline mist
(Ref. Standard UNI ISO 9227, CEI50-5/4, IEC 60068-2-30)
20
Treatment time (hours) 24 48 72 96 120 144 168 192
Rust penetration no no no no no no no 193 (1)
Blistering no no no no no no no no
(1) When a tearing test with adhesive tape is carried out after 193 hours of exposure, about 3 mm of paint detachment can be noted from the notch area with 1–1.5 mm rust penetration.
