20/62 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

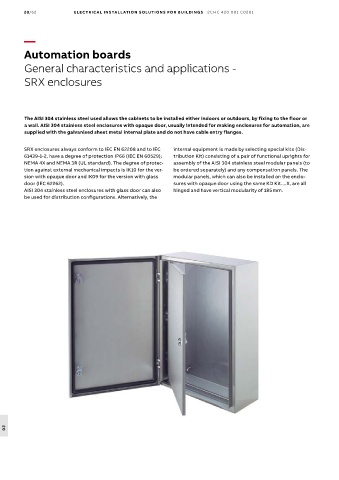

Automation boards

General characteristics and applications -
SRX enclosures

The AISI 304 stainless steel used allows the cabinets to be installed either indoors or outdoors, by fixing to the floor or
a wall. AISI 304 stainless steel enclosures with opaque door, usually intended for making enclosures for automation, are
supplied with the galvanised sheet metal internal plate and do not have cable entry flanges.

SRX enclosures always conform to IEC EN 62208 and to IEC internal equipment is made by selecting special kits (Dis-
61439-1-2, have a degree of protection IP66 (IEC EN 60529); tribution Kit) consisting of a pair of functional uprights for
NEMA 4X and NEMA 3R (UL standard). The degree of protec- assembly of the AISI 304 stainless steel modular panels (to
tion against external mechanical impacts is IK10 for the ver- be ordered separately) and any compensation panels. The
sion with opaque door and IK09 for the version with glass modular panels, which can also be installed on the enclo-
door (IEC 62262). sures with opaque door using the same KD Kit....X, are all
AISI 304 stainless steel enclosures with glass door can also hinged and have vertical modularity of 185 mm.
be used for distribution configurations. Alternatively, the
