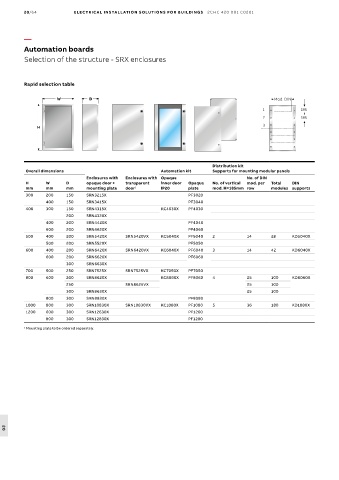

20/64 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Automation boards
Selection of the structure - SRX enclosures
Rapid selection table
W D Mod. DIN
1 185
2 185
3
H
Distribution kit
Overall dimensions Automation kit Supports for mounting modular panels
Enclosures with Enclosures with Opaque No. of DIN
H W D opaque door + transparent inner door Opaque No. of vertical mod. per Total DIN
mm mm mm mounting plate door 1 IP20 plate mod. H=185mm row modules supports
300 200 150 SRN3215X PF3020
400 150 SRN3415X PF3040
400 300 150 SRN4315X KC4030X PF4030
200 SRN4320X
400 200 SRN4420X PF4040
600 200 SRN4620X PF4060
500 400 200 SRN5420X SRN5420VX KC5040X PF5040 2 14 28 KD5040X
500 200 SRN5520X PF5050
600 400 200 SRN6420X SRN6420VX KC6040X PF6040 3 14 42 KD6040X
600 200 SRN6620X PF6060
300 SRN6630X
700 500 250 SRN7525X SRN7525VX KC7050X PF7050
800 600 200 SRN8620X KC8060X PF8060 4 25 100 KD8060X
250 SRN8625VX 25 100
300 SRN8630X 25 100
800 300 SRN8830X PF8080
1000 800 300 SRN10830X SRN10830VX KC1080X PF1080 5 36 180 KD1080X
1200 600 300 SRN12630X PF1260
800 300 SRN12830X PF1280
1 Mounting plate to be ordered separately.
