20/63

—

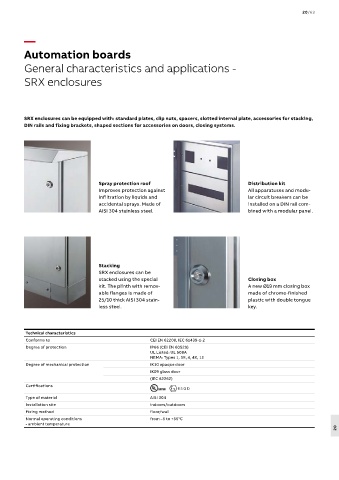

Automation boards

General characteristics and applications -
SRX enclosures

SRX enclosures can be equipped with: standard plates, clip nuts, spacers, slotted internal plate, accessories for stacking,
DIN rails and fixing brackets, shaped sections for accessories on doors, closing systems.

Spray protection roof Distribution kit
Improves protection against All apparatuses and modu-
infiltration by liquids and lar circuit breakers can be
accidental sprays. Made of installed on a DIN rail com-
AISI 304 stainless steel. bined with a modular panel.

Stacking
SRX enclosures can be
stacked using the special Closing box
kit. The plinth with remov- A new Ø19 mm closing box
able flanges is made of made of chrome-finished
25/10 thick AISI 304 stain- plastic with double tongue
less steel. key.

Technical characteristics
Conforms to CEI EN 62208, IEC 61439-1-2
Degree of protection IP66 (CEI EN 60529)
UL Listed: UL 508A
NEMA: Types 1, 3R, 4, 4X, 12
Degree of mechanical protection IK10 opaque door
IK09 glass door
(IEC 62262)
Certifications
II 3 G D
Type of material AISI 304
Installation site indoors/outdoors
Fixing method floor/wall
Normal operating conditions from –5 to +55°C
- ambient temperature
20
