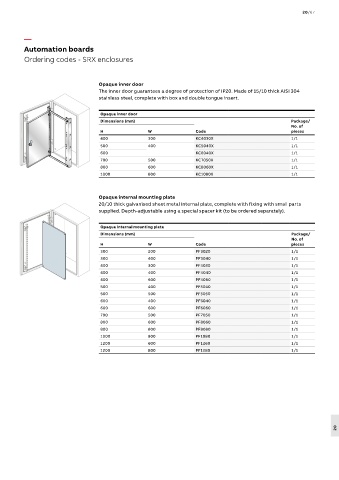

Automation boards
Ordering codes - SRX enclosures

Opaque inner door
The inner door guarantees a degree of protection of IP20. Made of 15/10 thick AISI 304
stainless steel, complete with box and double tongue insert.

Opaque inner door
Dimensions (mm) Package/
No. of
H W Code pieces
400 300 KC4030X 1/1
500 400 KC5040X 1/1
600 KC6040X 1/1
700 500 KC7050X 1/1
800 600 KC8060X 1/1
1000 800 KC1080X 1/1

Opaque internal mounting plate
20/10 thick galvanised sheet metal internal plate, complete with fixing with small parts
supplied. Depth-adjustable using a special spacer kit (to be ordered separately).

Opaque internal mounting plate
Dimensions (mm) Package/
No. of
H W Code pieces
300 200 PF3020 1/1
300 400 PF3040 1/1
400 300 PF4030 1/1
400 400 PF4040 1/1
400 600 PF4060 1/1
500 400 PF5040 1/1
500 500 PF5050 1/1
600 400 PF6040 1/1
600 600 PF6060 1/1
700 500 PF7050 1/1
800 600 PF8060 1/1
800 800 PF8080 1/1
1000 800 PF1080 1/1
1200 600 PF1260 1/1
1200 800 PF1280 1/1
