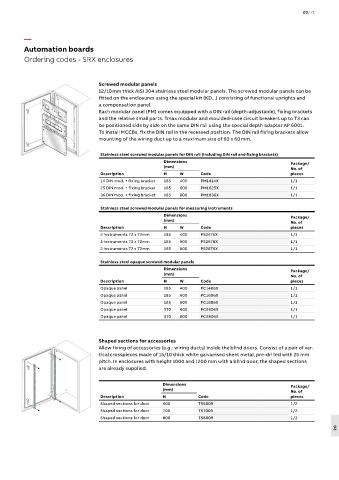

20/71

—
Automation boards
Ordering codes - SRX enclosures

Screwed modular panels
12/10 mm thick AISI 304 stainless steel modular panels. The screwed modular panels can be
fitted on the enclosures using the special kit (KD...) consisting of functional uprights and
a compensation panel.
Each modular panel (PM) comes equipped with a DIN rail (depth-adjustable), fixing brackets
and the relative small parts. Tmax modular and moulded-case circuit breakers up to T3 can
be positioned side by side on the same DIN rail using the special depth adapter AP 6001.
To install MCCBs, fix the DIN rail in the recessed position. The DIN rail fixing brackets allow
mounting of the wiring duct up to a maximum size of 60 x 60 mm.

Stainless steel screwed modular panels for DIN rail (including DIN rail and fixing brackets)
Dimensions Package/
(mm) No. of
Description H W Code pieces
14 DIN mod. + fixing bracket 185 400 PM1414X 1/1
25 DIN mod. + fixing bracket 185 600 PM1625X 1/1
36 DIN mod. + fixing bracket 185 800 PM1836X 1/1

Stainless steel screwed modular panels for measuring instruments
Dimensions Package/
(mm) No. of
Description H W Code pieces
2 instruments 72 x 72mm 185 400 PS2476X 1/1
2 instruments 72 x 72mm 185 600 PS2676X 1/1
2 instruments 72 x 72mm 185 800 PS2876X 1/1

Stainless steel opaque screwed modular panels
Dimensions Package/
(mm) No. of
Description H W Code pieces
Opaque panel 185 400 PC1406X 1/1
Opaque panel 185 600 PC1606X 1/1
Opaque panel 185 800 PC1806X 1/1
Opaque panel 370 600 PC2606X 1/1
Opaque panel 370 800 PC2806X 1/1

Shaped sections for accessories
Allow fixing of accessories (e.g.: wiring ducts) inside the blind doors. Consist of a pair of ver-
tical crosspieces made of 15/10 thick white galvanised sheet metal, pre-drilled with 25 mm
pitch. In enclosures with height 1000 and 1200 mm with a blind door, the shaped sections
are already supplied.

Dimensions Package/
(mm)
No. of
Description H Code pieces
Shaped sections for door 600 TS6009 1/2
Shaped sections for door 700 TS7009 1/2
Shaped sections for door 800 TS8009 1/2
