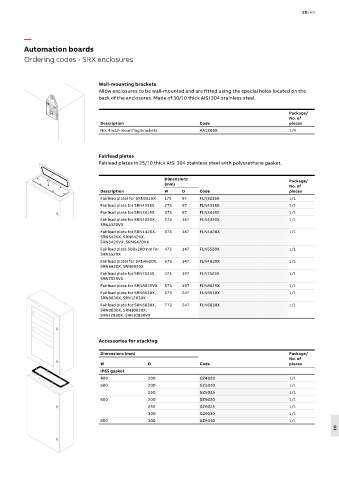

Automation boards
Ordering codes - SRX enclosures

Wall-mounting brackets
Allow enclosures to be wall-mounted and are fitted using the special holes located on the
back of the enclosures. Made of 30/10 thick AISI 304 stainless steel.

Package/
No. of
Description Code pieces
No. 4 wall-mounting brackets AA1206X 1/4

Fairlead plates
Fairlead plates in 25/10 thick AISI 304 stainless steel with polyurethane gasket.

Dimensions Package/
(mm)
No. of
Description W D Code pieces
Fairlead plate) for SRN3215X 173 97 FLN3215X 1/1
Fairlead plate for SRN4315X 273 97 FLN4315X 1/1
Fairlead plate for SRN3415X 373 97 FLN3415X 1/1
Fairlead plate for SRN4320X, 273 147 FLN4320X 1/1
SRN4320VX
Fairlead plate for SRN4420X, 373 147 FLN4420X 1/1
SRN5420X, SRN6420X,
SRN5420VX, SRN6420VX
Fairlead plate 500x200mm for 473 147 FLN5520X 1/1
SRN5520X
Fairlead plate) for SRN4620X, 573 147 FLN4620X 1/1
SRN6620X, SRN8620X
Fairlead plate for SRN7525X, 473 197 FLN7525X 1/1
SRN7525VX
Fairlead plate for SRN8625VX 573 197 FLN8625X 1/1
Fairlead plate for SRN6630X, 573 247 FLN6630X 1/1
SRN8630X, SRN12630X
Fairlead plate for SRN6830X, 773 247 FLN6830X 1/1
SRN8830X, SRN10830X,
SRN12830X, SRN10830VX

Accessories for stacking

Dimensions (mm) Package/
No. of
W D Code pieces
IP65 gasket
400 200 GZ4020 1/1
500 200 GZ5020 1/1
250 GZ5025 1/1
600 200 GZ6020 1/1
250 GZ6025 1/1
300 GZ6030 1/1
800 300 GZ8030 1/1
