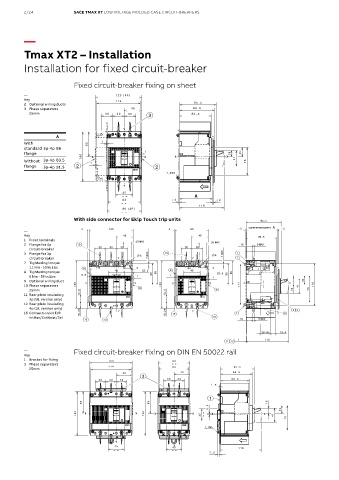

2/24 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

Tmax XT2 – Installation

Installation for fixed circuit-breaker

Fixed circuit-breaker fixing on sheet
—
Key
2 Optional wiring ducts
3 Phase separators
25mm

A
With
standard 3p-4p 86
flange
Without 3p-4p 83.5
flange 3p-4p 91.5

With side connector for Ekip Touch trip units

COMPARTMENT DEPTH
—
Key
1 Front terminals
2 Flange for 4p
circuit-breaker
3 Flange for 3p
circuit-breaker
7 Tightening torque
1,1 Nm - 10 In.Lbs
8 Tightening torque
6 Nm - 53 In.Lbs
9 Optional wiring duct
10 Phase separators
25mm
11 Rear plate insulating
3p (UL version only)
12 Rear plate insulating
4p (UL version only)
15 Connection kit F/P
IntBus/ExtNeut/Sel

— Fixed circuit-breaker fixing on DIN EN 50022 rail
Key
1 Bracket for fixing
3 Phase separators
25mm
