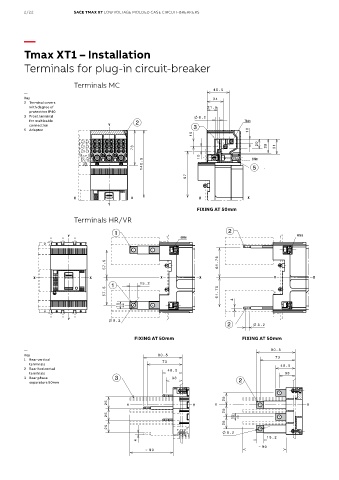

Tmax XT1 – Installation

Terminals for plug-in circuit-breaker

Terminals MC
—
Key
2 Terminal covers
with degree of
protection IP40
3 Front terminal
for multicable
connection
5 Adaptor

FIXING AT 50mm
Terminals HR/VR

FIXING AT 50mm FIXING AT 50mm
—
Key
1 Rear vertical
terminals
2 Rear horizontal
terminals
3 Rear phase
separators 90mm
